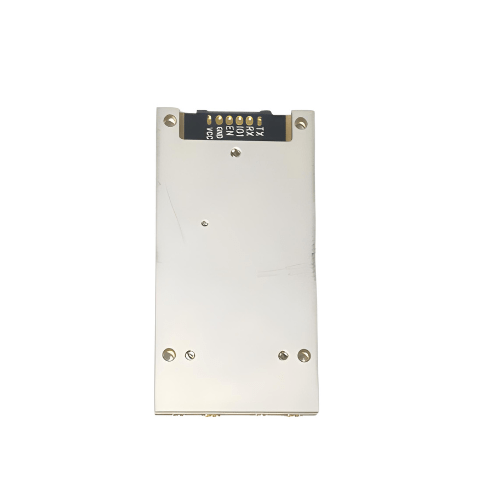

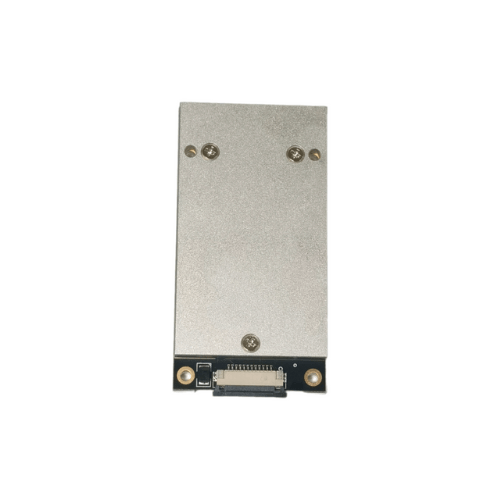

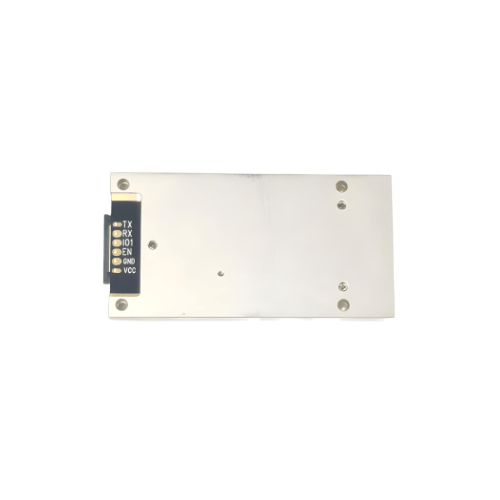

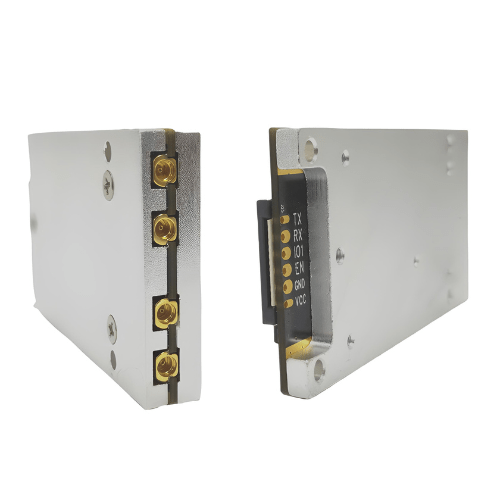

Amuse Tech Solutions Four Antenna Ports E710 R2000 Chip UHF Rfid Reader Module With Free SDK And Firmware Customization
Amuse Tech Solutions Four Antenna Ports E710 R2000 Chip UHF Rfid Reader Module with free sdk and firmware customization uses E710 chip, which complies with ISO18000-6C/ISO18000-6D protocol, with LBT function.
Description
Overview
Amuse Tech Solutions Four Antenna Ports E710 R2000 Chip UHF Rfid Reader Module with free sdk and firmware customization uses E710 chip, which complies with ISO18000-6C/ISO18000-6D protocol, with LBT function. It supports dense reader working mode (DRM). With standard 12dBi antenna, the reading distance can reach 78.7 ft (24 m), maximum identifying speed can reach 400 per S; with simple power supply and interface circuit, a high-performance RFID system can be established. It is suitable for logistics, apparel, medical industry, and complex assets management, etc.
Technical Specifications
| RF Output Power | 5 dBm to 30 dBm |
| Type | UHF RFID reader module |
| DC Power | 3.6 V to 5 V |
| Idle Power Consumption | 950 mA at 5 V |
| Source Code | Windows XP/7/8, Windows CE, Android, VB |
| Tag Reading Distance | 78.7 ft (24 m) with 12 dBi |
| Multi-Tag | 400 tags per s |
| Chip | Impinj Indy R2000 |
| Antenna | MMCX |
| Size | 2.2 in x 1.4 in x 0.3 in (55.9 mm x 35.6 mm x 9 mm) |
