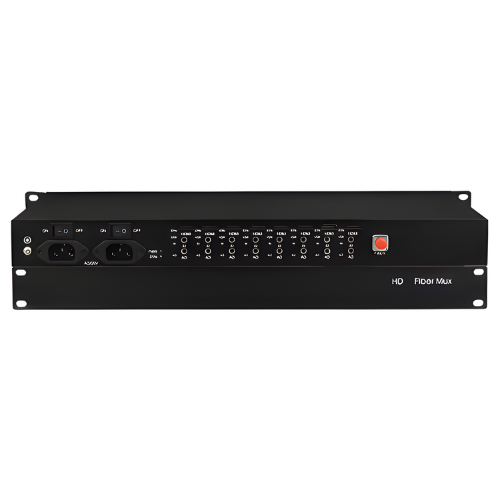

Amuse Tech Solutions Fiber Optic Video Converter
This Fiber Optic Video Converter has AC 220 V or DC 48 V or DC 24 V power supply, working temperature of -14 °F to 140 °F, pixel bandwidth 340 MHz.
Description
Features
- All-aluminium and all-gold anodized 19 in (48.26 cm) 1U rack mount
- The device is paired and used
- The video signal of the local end is input
- The video signal of the opposite end is output
- The transmission rate of each HD Video is 10G optical Fiber
- Support HD Video 1.4, HDCP v 1.4 high-definition
- 3D video signal transmission, the highest resolution: 4096 × 2160 at 30 hz
- Can reverse EDID, support HDCP content protection
- Automatic identification and configuration of various display modes
- Each channel of video can bring one channel of independent analog audio
- The HD Video interface has built-in ESD protection circuit
- AC 220 power supply, also DC 48 V or +24 V power supply
Technical Specifications
| Power supply | AC 220 V or DC 48 V or DC 24 V (power supply optional) |
| Optical Port | 1 |
| Optical Fiber | Single Fiber |
| Fiber Interface | FC |
| Wavelength | 1310 nm to 1610 nm single mode; |
| No relay transmission distance | 0 mi to 49.71 mi (0 km to 80 km) |
| Typical transmit power | single mode 100 uw to 0.93 mw |
| Interface | HD video female |
| Signal level | 0.5 V to 4 Vp p |
| Input or Output Impedance | 600 Ω (unbalanced or balanced) |
| AD or DA bit width | 24 Bits |
| Sampling frequency | 128 K |
| Bandwidth | 20 Hz to 20 kHz |
| Total harmonic distortion | <1% |
| Signal to Noise Ratio (SNR) | >85 dB |
| Physical interface | 0.14 in (3.5 mm) |
| Working temperature | -14 °F to 140 °F (-10 ° C to 60 ° C) |
| Storage temperature | -40 °F to 185 °F (-40 ° C to 85 ° C) |
| Working humidity | 0% to 95% (no condensation) |
| MTBF | >100,000 hours |
| Standard | HD Video 1.4 HDCP1.4 |
| Pixel bandwidth | 340 MHz |
| Product function description | Simultaneous transmission of 8 4K HD Video 1.4 signals over optical Fiber |
| Service port description | 1 optical Fiber interface; 8 HD Video signals |
| Product size | 19.09 in x 7.87 in x 1.77 in (485mm x 200mm x 45mm) ,1U rackmount |
| Weight | 4.96 lb (2.25 kg) or set |
