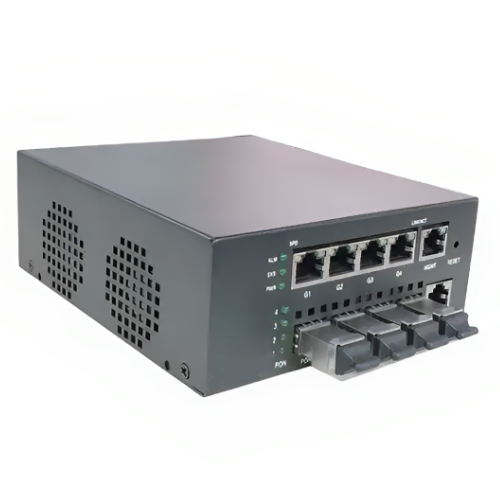

Amuse Tech Solutions Fiber Optic Receiver
This Fiber Optic Receiver has 4 gigabit SFP PON ports, wavelength of 1310 (RX) or 1490 (TX), receiving sensitivity of –27 dBm and 16 K MAC.
Description
Features

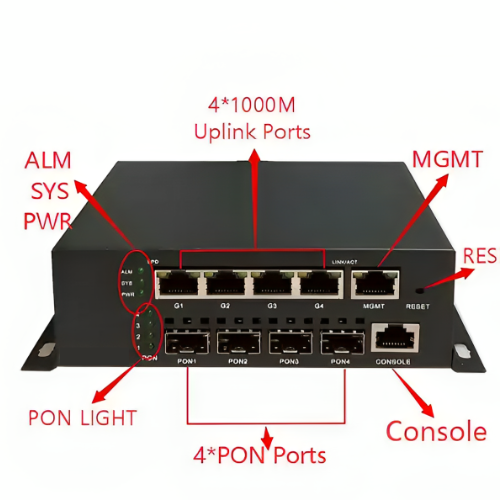

- 4 SFP PON ports, 1000M RJ 45 Uplink ports
- Each PON port supports 1:64 split ratio
- Total 256 ONUs access capability
- 42 mi (20 km) distance under 1:32 split ratio
- Ideal for large area, integrated network access
- Surveillance transmission
Technical Specifications
| Wavelength | 1310 (RX) or 1490 (TX) |
| Optical power | +2.5 dBm to +7 dBm |
| Receiving Sensitivity | -27 dBm |
| Maximum distance | 12.42 mi (20 km) |
| Maximum optic ratio | 1:64 |
| Capacity | 4PON System, 256 |
| MAC | 16 K |
| Port | 4 Gigabit SFP PON ports 4 GE Uplink ports 1 FE management port 1 RS 232 DB9 serial port |
| MTBF | 100000 hours |
| Standard | Support IEEE 802.3, IEEE 802.3u, IEEE 802.3 ab Support IEEE 802.1Q VLAN Support IEEE 802.1P QoS |
