Amuse Tech Solutions Fiber Optic Extender Converter Single Mode

Description

Overview

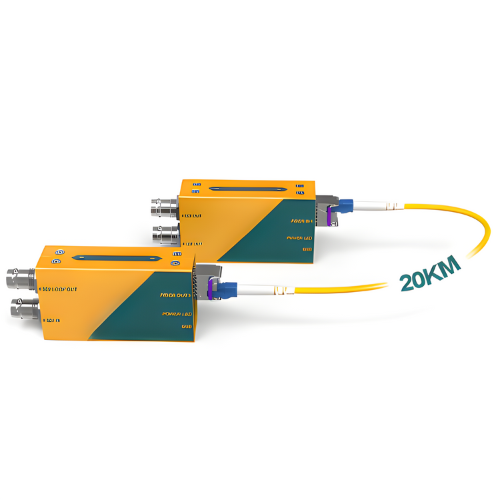

Amuse Tech Solutions fiber optic extender converter single mode is a transmitter or receiver kit supporting single mode lc simplex Fiber extensions up to 6.21 mi (10 km). It is a miniature-style extension solution that supports all sdi formats resolutions up to 4 k at 60 hz with audio and metadata, also supports level A and level B for 3g-sdi. It features a local sdi loop out and dual sdi outputs and supports sd or hd or sd or 3 G or 6 G or 12 G to sdi signals. It is also compatible with multimode Fiber.



Features

• 21 mi (10 km) transmission distance
• Support 12 Gb or s all formats, including 3G level A and level B
• SFP module with LC connector
• 12G-SDI input & loop out on transmitter
• Dual 12G-SDI outputs on receiver
• SDI input automatic switching SD, HD, 3G, 6G & 12G
• 5V USB power supply



Technical Specifications

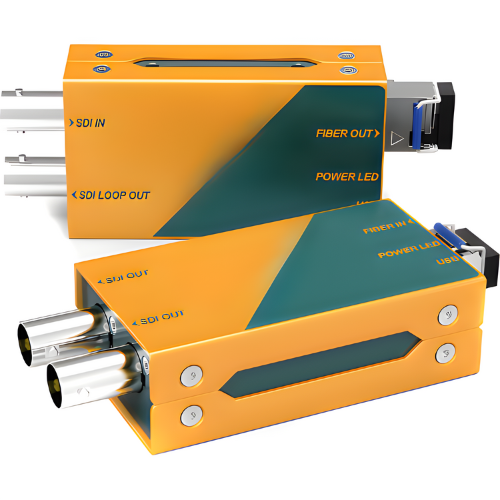

Transmitter	SDI Input x 1, Loop Out x 1
Receiver	SDI Out x 2
Distance	0 in to 6.21 mi (0 to 10 km)
Optical Wavelength	1310 nm
Bandwidth	12 Gbps
Support	UP to 4 K 12 G
Transmitter SDI Video Input	SD or HD or 3 G or 6 G or 12 G to SDI or ASI 75 Ω x 1
Transmitter SDI Loop Output	SD or HD or 3 G or 6 G or 12 G to SDI or ASI 75 Ω x 1

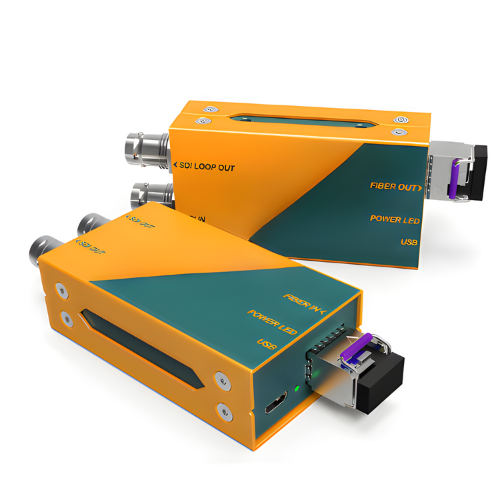

Transmitter Fiber Optical Output	SFP module (LC) x 1
Receiver Fiber Optical Input	SFP module (LC) x 1
Receiver SDI Video Output	SD or HD or 3 G or 6 G or 12 G to SDI or ASI 75 Ω x 2

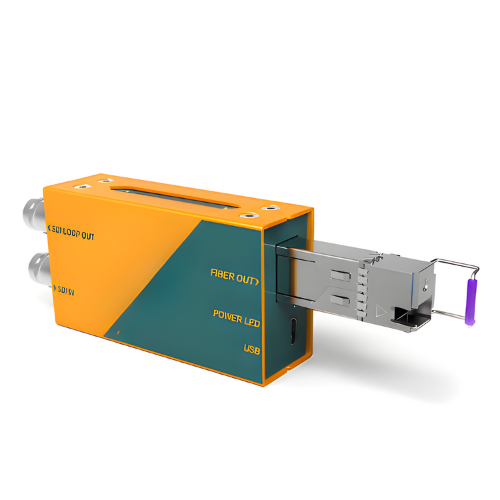

Optical Fiber Module	SFP module Hot pluggableConnector style: LCFiber style: single modeOptical wavelength: 1310 nmMaximum Bandwidth: 12 GbpsOptical Trans
Single-mode maximum Distance	12.5 mi (10 km) for 12 G (4 K 80 P)
Optic Fiber Compliance	SMPTE 297 M
SDI Compliance	SMPTE ST to 2081, SMPTE ST to 2082SMPTE 259 M, SMPTE 292 M, SMPTE 296 M, SMPTE 424 M to B, ITU to R BT 656, ITU to R BT  601, SMPTE 247 M, SMPTE 425 M
SDI Auto Switching	SD or HD or 3 G or 6 G or 12 G to SDI on input
SDI Video Rate	SD or HD or 3 G or 6 G or 12 G to SDI
SDI Color Space	YUV, RGB
SDI Equalization and Re-clocking	Yes, SDI input and output up to 984.25 ft (60 m) for 12 G-SDI
SDI Audio	Supports 32 or 16 channels embedded
Power	Micro USB
Power Consumption	1.5 W
Voltage Range	3.3 V to 5 V
Operating Temperature	-4 °F to 140 °F (-20 °C to 60 °C)
Storage Temperature	-22 °F to 158 °F (-30 °C to 70 °C)
Relative Humidity	0% to 90% non-condensing
Power consumption	Each 4 W
Power	12 V 1 A
Dimension(L*W*H)	3.03 in x 1.61 in x 0.91 in (71 mm x 41 mm x 23 mm)
Weight	0.88 lb (400 g)
