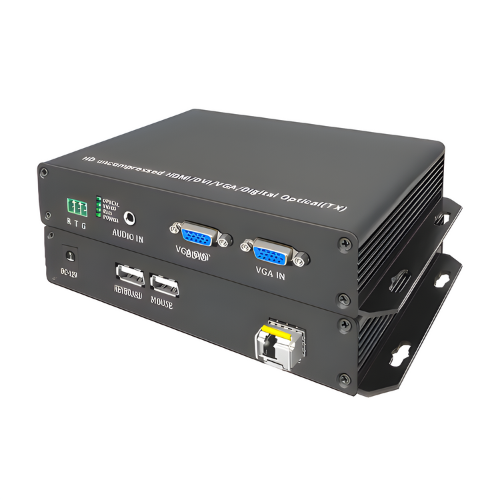

Amuse Tech Solutions Fiber Optic Extender

Description

Overview

Amuse Tech Solutions fiber optic extender (including VGA optical transmitter & receiver) adopts uncompressed digital HD video and high-speed digital optical fiber transmission advanced technology. It can transfer signal sources (computer signal source, VGA signal source, hd digital DVD or DVR signal) to long distance terminal easily, with strong anti-interference performance, ensure the signal completed and stable.

VAG optical transceiver is very suitable for the wide application environment of transporting content with the highest quality, long distance transportation and high resolution. Due to the inherent safety and the anti-jamming of optical fiber transmission, optical fiber application is more suitable for government, army and medical environment.



Features

• Low energy consumption, long distance
• Fully digital, Uncompressed HD optical Fiber transmission
• Compliance with VGA standard protocol
• Support transmitter one channel signal output
• 1 channel analog audio 0.14 in (3.5 mm)
• Support RS 232 signal bidirectional transmission, baud rate self-adaptive
• Support video resolution up to 1920 x 1080 at 60 Hz
• Support USB keyboard and mouse transmission
• Automatic identification and configure display mode
• Automatic equalization inside, stable and clear graphics
• ESD protection circuit inside, to ensure the ESD damage
• Simple to install, plug and play
• Supports Customization and OEM



Technical Specifications

Transmitter-Input	VGA x RS 232 x 1 Audio x 1 USB x 1
Transmitter-Output	LC x 1, VGA x 1
Receiver-Input	LC x 1
Receiver-Output	VGA x 1 RS232 x 1 Audio x 1 USB x 2
Maximum resolution	1920 x 1200 at 60 HZ
Transmission distance	Single mode Fiber 6.21 mi (10 km) (standard), 18.64 mi (30 km) 37.28 mi (60 km) Multimode Fiber 0.19 mi (300 m)
Cable	Single-mode 1 core Fiber
Audio interface	0.14 in (3.5 mm)
Audio Format	44.1 K, 48 K, 96 K, 176 K, 192 K
RS 232 interface	3 to port industrial terminal
RS 232 Baud rate	115200 downwards compatible
RS 232 Data bit	8 bits
Keyboard or Mouse transmitter interface	Type A USB interface
Keyboard or Mouse receiver      interface	Type B USB interface
SFP interface	LC
SFP wavelength	1550 nm or 1310 nm
SFP Bandwidth	3 Gbps
SFP Distance	6.21 mi (10 km) 12.43 mi (20 km) 24.85 mi (40 km) 37.28 mi (60 km) 49.71 mi (80 km)
SFP Attenuation	-3 dB
Temperature	-4 °F to 158 °F (-20 °C to +70 °C)
Humidity	5% to 90%
Power consumption	Each 4 W
Power	12 V 1 A
Dimension(L*W*H)	4.31 in x 5.98 in x 1.15 in (109.5 mm x 152 mm x 29.3 mm)
Weight	TX: 0.88 lb (400 g)RX: 0.88 lb (400 kg)
