Amuse Tech Solutions Fiber Optic DVI Converter

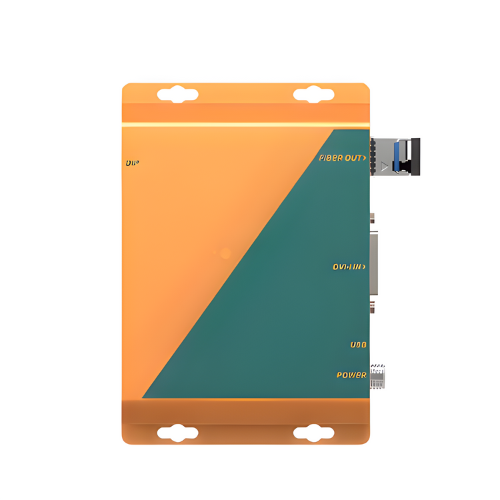

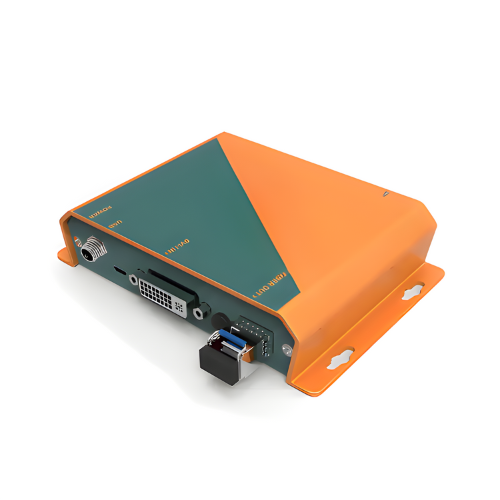

Amuse Tech Solutions DVI-I fiber optic extender is a transmitter or receiver kit supporting single-mode LC simplex Fiber extensions up to 12.43 mi (20 km).
Description
Overview
Amuse Tech Solutions DVI-I fiber optic extender is a transmitter or receiver kit supporting single-mode LC simplex Fiber extensions up to 12.43 mi (20 km). It is a miniature-style extension solution that supports video formats resolutions up to 1080 p without audio. Multimode Fiber can also be used but at shorter distances.
Â
Features
- 43 mi (20 km) Fiber transmission
- Total 6 output from 1360 x 768 at 60 to 1920 x 1080 at 50 or 60
- Support VESA standard DVI-1 inputs
- Optional HDMI, VGA and YPbPr signal inputs
- USB DC 5 V to 12 V
Â
Technical Specifications
| DVI over Fiber Extender Transmitter | 1 |
| DVI over Fiber Extender Receiver | 1 |
| Voltage Range | USB: 3.3 V to 5 V, DC: 5 V to 24 V |
| Power | Micro USB or DC connector |
| Transmitter Video Input | DVI-1 x 1 (Optional: HDMI or VGA or YPbPr) |
| Transmitter Fiber Optical Output | SFP module; (LC) x 1 |
| Receiver Fiber Optical Input | SFP module; (LC) x 1 |
| Receiver Video Output | DVI-1 x 1 (Optional: HDMI or VGA or YPbPr) |
| Optical Fiber Module | SFP module LC |
| Single-mode Maximum Distance | 12.5 mi (20 Km), single mode |
| Power | DC 5 V to 24 V, Micro USB 5 V |
| Power Consumption | Transmitter: 3 W; Receiver 2.5 W |
| Operating Temperature | -4 °F to 140 °F (-20 °C to 60 °C) |
| Storage Temperature | -22 °F to 158 °F (-30 °C to 70 °C) |
| Relative Humidity | 0% to 90% non condensing |
| Power consumption | Each 4 W |
| Power | 12 V 1 A |
| Dimension(L*W*H) | 3.03 in x 1.61 in x 0.91 in (71 mm x 41 mm x 23 mm) |
| Weight | 0.88 lb (400 g) |
