Amuse Tech Solutions Fiber HDMI Converter

Description

Overview

Amuse Tech Solutions HDMI fiber optic extender provides extension of HDMI signals long distances 0.62 mi (1 km) to 12.43 mi (20 km) over one fiber optic cable. It supports high resolution up to 3840 x 2160 @60 Hz. The extender has been tested for high temperature and force, it can be used for a wide range of applications requiring long distance transmission and extreme environment. It can operate between 23 °F to 158 °F (-5 ℃ to +70 ℃), with high resolution and good stability.



Features

• Support video resolution up to 3840 x 2160 at 60 Hz signal
• Supports screen formats YUV 444 and RGB 444
• Compliance with HDMI 2.0 and HDCP 2.2 standard
• Supports RS 232 two way transmission
• Support USB keyboard and mouse
• Support for embedded audio input and output
• Supports bidirectional transmission of infrared signals
• High compatibility, can auto match source and display device
• Built-in automatic adjustment system, make the image smooth, clear and stable

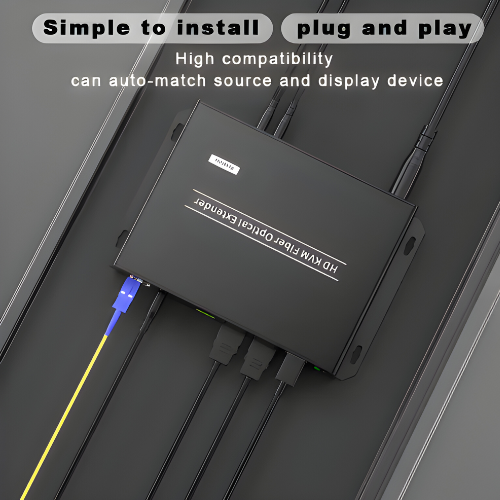

• Simple to install, plug and play



Technical Specifications

Resolution	4 K x 2 K at 60 Hz; 3 D
Transmission distance	12.43 mi (20 km)
Transfer Protocol	HDMI 2.0 or HDCP 2.2
Display Format	YUV 444 or RGB 444
Remote Control	IR or RS 232 or KVM
Audio	2.0 stereo
Interface	HDMI-A
Standards	HDMI 2.0; HDCP 2.2
Maximum pixel clock	340 MHz
Maximum data rate	18 Gbps
Maximum resolution	3840 x 2160 at 60 Hz
Impedance	100 Ω
Interface	SFP model to LC connector
Fiber type	Single mode
Wavelength	T to 1310 nm R to 1550 nm
Interface bandwidth	2.5 Gbps
Interface	1.14 in (3.5 mm) earphone seat
IR frequency	28 KHz to 61 KHz
Interface	Industrial Terminal
Signal Direction	duplexing
Baud Rate	Self adaptive Max: 115200 bps
Data Bits	8
Power supply	The power adapter: DC 12 V
Power dissipation	MAX 13 W
Operating Temperature	23 °F to 158 °F (-5 ℃ to +70 ℃)
Humidity	5% to 90%
Dimension	4.84 in x 3.23 in x 0.91 in (123 mm x 82 mm x 23 mm)
Dimension	6.89 in x 4.45 in x 1.18 in (17.5 cm x 11.3 cm x 3 cm)
