Amuse Tech Solutions Fiber Converter Video Transmitter Receiver

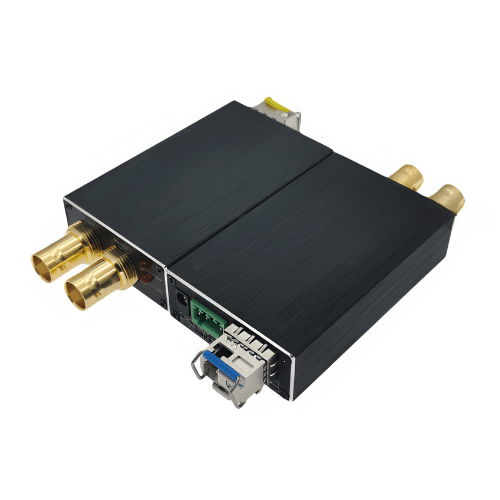

Amuse Tech Solutions Fiber Converter Video Transmitter Receiver supports 1 Ch 12 G Video (audio embedded), 1 Ch Tally signal, and 1 Ch Backward RS 485 transmitted via fiber optical cable and monitors the signal locally over a 12 G loop output.
Description
Overview
Amuse Tech Solutions Fiber Converter Video Transmitter Receiver supports 1 Ch 12 G Video (audio embedded), 1 Ch Tally signal, and 1 Ch Backward RS 485 transmitted via fiber optical cable and monitors the signal locally over a 12 G loop output. E-link 12 G Video over Fiber Converters includes one transmitter and one receiver for HDTV 4 K 2 K (3840 × 2160 at 60 Hz), 1080 P,1080 I, and 720 P.
Features
- SDI channels with embedded 8-channel audio
- Automatic cable equalization for signal integrity
- Support for various SMPTE standards
- Integrated Reclocker for SMPTE rate locking
- Compatible with 12 G or 6 G or 3 G-SDI camera system
- Long transmission ranges

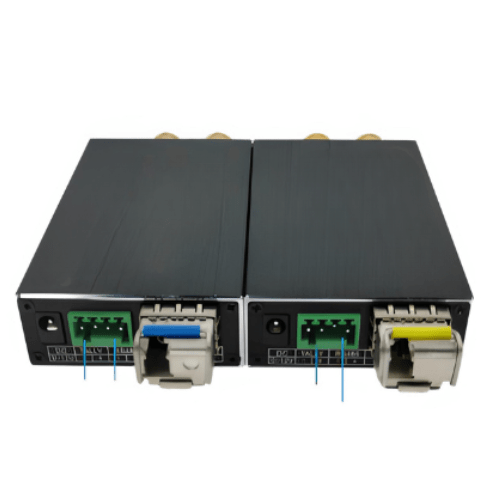

- Tally and backward RS 485 support
- Hot swapping and hot plugging capabilities
- Fully digital non-compression transmission
- Optimal dynamic range with no adjustment needed
- Fiber optic WDM or CWDM or DWDM techniques
- Support for various video resolutions including 4 K
Technical Specifications
| Formats | Supports ST-2082-1(12 G), ST-2081-1(6 G), ST-424(3 G), ST-292(HD) And ST-259(SD) |
| Compatible | Compatible with DVB-ASI and AES 10 (MADI) |

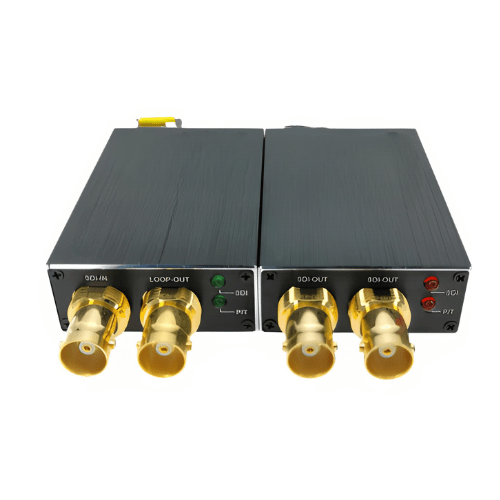

| Input | 1 x 12 G-SDI on BNC |
| Output | 1 x LC optical fiber |
| 1 x 12 G-SDI loop-out on BNC | |
| Supported Resolution | HDTV 4 K ×2 K, 1080 P, 1080 I, 720 P |
| Resolution Range | 3840 × 2160 at 60 Hz |
| Input Cable Specification | 229.66 ft (≤70 m) at 12 G SDI Belden 1694 A |
| Output Cable Specification | 229.66 ft (≤ 70 m) at 12 G SDI Belden 1694 A |
| Data Type | Backward Tally |
| Data Type | Backward RS 485 |
| Optical Transmission Bandwidth | 270 GHz to 12 GHz |

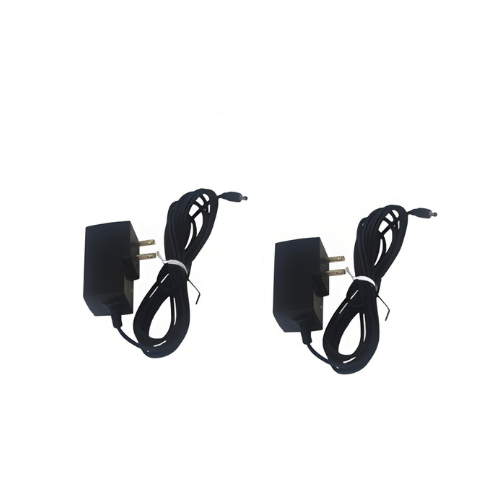

| Power | 5 V DC to 15 V DC |
| Power Consumption | 2 W (Max.) |
| Dimensions (L x W x H) | 3.15 in x 1.57 in x 0.79 in (80 mm x 40 mm x 20 mm) |
| Storage Temperature | -40 °F to 176 °F (-40 °C to 80 °C) |
| Operating Temperature | -40 °F to 185 °F (-40 °C to 85 °C) |
