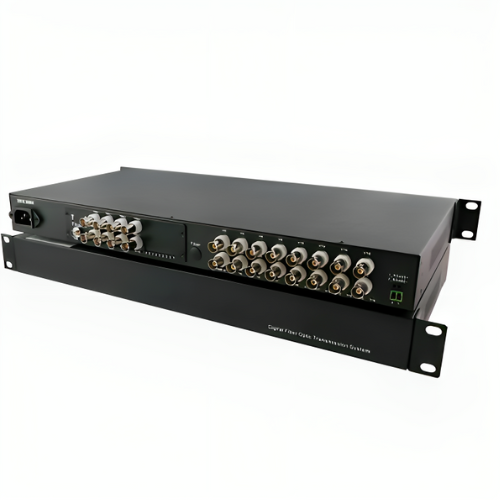

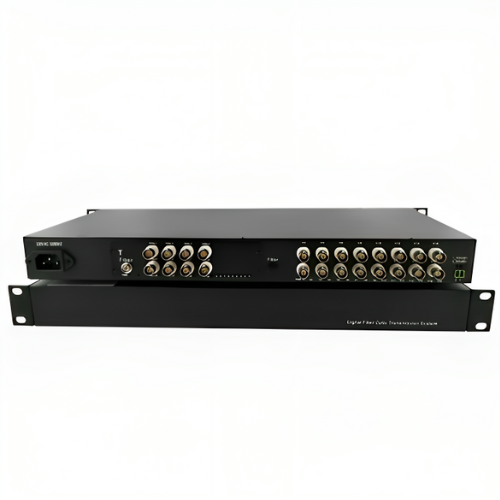

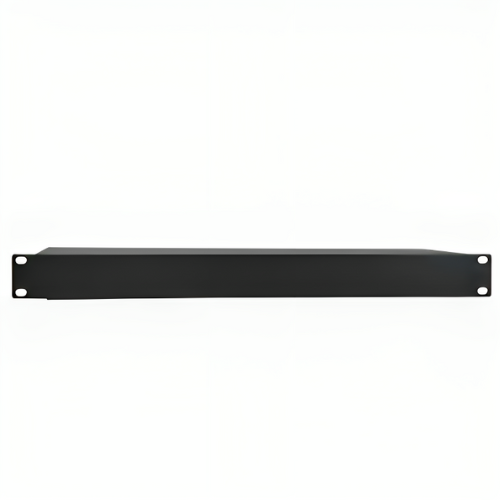

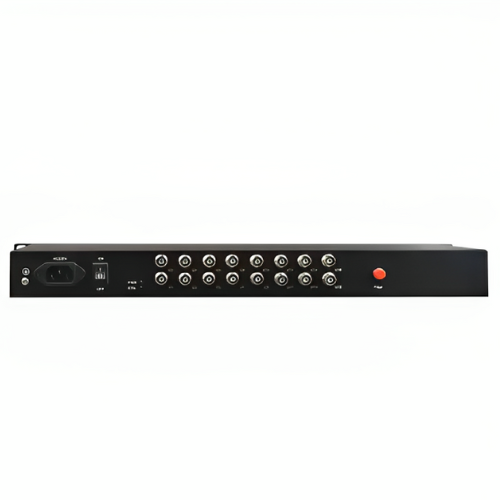

Amuse Tech Solutions Fiber Converter
Amuse Tech Solutions fiber converter has digital coding technology, 16 x HD-SDI video signals and via a signal root achieve long-distance single-mode fiber bidirectional transmission, the maximum signal without distortion-free relay transmission 49.7 mi (80 Km).
Description
Overview
Amuse Tech Solutions fiber converter has digital coding technology, 16 x HD-SDI video signals and via a signal root achieve long-distance single-mode fiber bidirectional transmission, the maximum signal without distortion-free relay transmission 49.7 mi (80 Km). HD -SDI Optical high-definition digital TV signal format from 270 Mbps to 1.485 Gbps, HD -SDI video optical systems support signal SMPTE292, SMPTE344M, SMPTE259 M and other digital television formats.
Features
- Desktop & Plug-in Frame Options
- Auto Detection: SD, HD (270 Mbit/s – 1.48 Gbit/s)
- Transmission Distance: Up to 49.7 mi (80 KM)
- SMPTE Standards Support: 292 M, 344 M, 259 M
- Cable Equalization: Automatic for 140 M – 1.485 Gb/s
- SDI Video Output for Transmitter and Receiver
- LED Status Indicator for SDI Signal
- Video Interface: 3 Mine-Protected, ITU-T K.21 (6 KV)
Technical Specifications
| Product name | 16 Channel 3G SDI to fiber optic converter |
| Power supply | AC or DC |
| Fiber Impedance | SC, FC, or ST |
| Video bandwidth | 270 Mb/s to 1.485 Gb/s |
| TV signals | SMPTE 292 M, SMPTE 344 M, SMPTE 259 M |
| Reflection loss | >15 DB |
| Balanced | 0.15 mi (250 m) @ 270M bit/s, 140 m at 1.485 Gbit/s, 262.46 ft (80 m) |
| Interface | 75 ohms (unbalanced) |
| Color | black |
| Working Humidity | 5 % to 95 % (no condensation) |
| Working temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Reliability | > 30000 Hours |
| Weight | 2.20 lb (2.5 kg) |
| Size | 19.09 in x 7.87 in x 1.77 in (485 mm x 200 mm x 45mm) |
