Amuse Tech Solutions Fast POE Switch
This Fast POE Switch has data distance range of ≤9842.52 in, output power range of 15.4 W to 30 W, and switch capability range of 1.2 Gbps.
Description
Features
- Support IEEE802.3 af / at
- Wireless Access Point
- IP Camera
- IP Phone
- Computer Networks
Technical Specifications

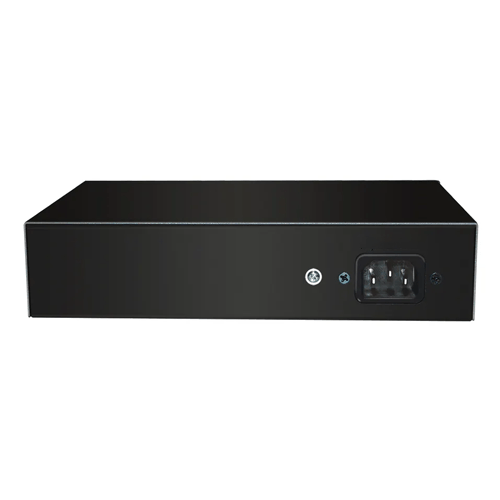

| Power Supply | Built-in and External are available |
| Output Power | 15.4 W to 30 W |

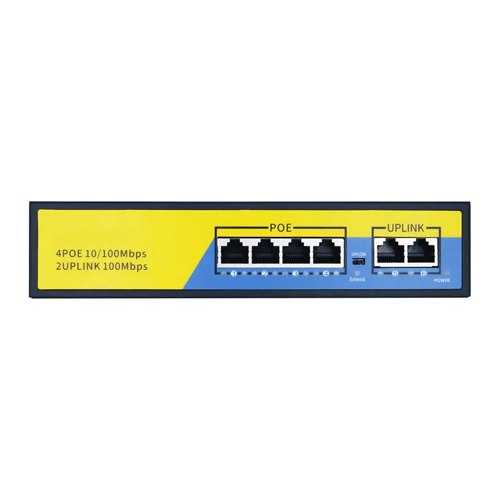

| POE Port | 1 to 4 support IEEE 802.3 af / at |
| Power Pin | Both (1 / 2)+, (3 / 6)- and (4 / 5)+, (7 / 8)- |
| POE Type | End-span |
| Whole Power | ≤72 W (52 V 1.4 A) |
| Network Medium | 10 / 100 BASE-TX:5 class and above non shielded twisted pair |
| Power Distance | ≤9842.52 in (250 m) |
| Switch Capability | 1.2 Gbps |
| Data Distance | ≤9842.52 in (250 m) |
| Forwarding Mode | Store-and-forward |
| Forwarding Rate | 10BASE-T:14880 PPS / port,100BASE-tx:14800 pps / port |
| MAC Address | MAC address table 1 K |
| Port Function | Power priority mechanism, fast-and-forward, MAC automatic learning and aging, IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |
| LED Indicator | LINK / ACT 100 MbpsPOE Status Indicator
Power indicator Extender |
| Size | 7.95 in x 5.51 in x 1.77 in (202 mm x 140 mm x 45 mm) |
