Amuse Tech Solutions Ethernet Switch
Amuse Tech Solutions ethernet switch is a full gigabit WEB management switch independently developed.
Description
Overview
Amuse Tech Solutions ethernet switch is a full gigabit WEB management switch independently developed. (hereinafter referred to as H 3 C), which is specially designed for the construction of high-performance network requirements. It provides a more comprehensive security access policy and stronger ease of use for network management and maintenance based on high performance; and it can be widely used in the network construction scenarios of multiple industries, such as the government, small and medium-sized enterprises, general education and vocational education, security monitoring and hotels, and so on.
Features
- Support 4 100 M optical + 4 100 M electricity configuration
- IP 40 protection, EMC 4 level protection, 4000 V lightning protection
- Aluminum alloy shell, DIN rail type installation
Technical Specifications

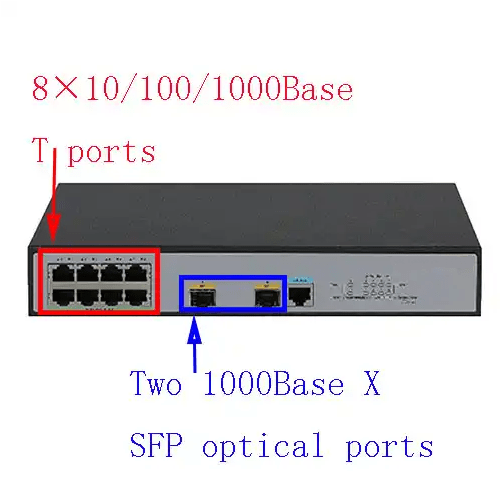

| Port | S 1850 v 2 to 9 P:8 10/100/1000 Base-T electrical ports + 1 1000 Base-X SFP optical port |
| Packet forwarding rate | S 1850 v 2 to 9 P:30 Mpps |
| Switching capacity | 336 Gbps |
| PoE capacity | The models with PWR are supported, others are not supported |
| Electrical port properties | Supports half-duplex, full-duplex, and self-negotiation operating modes Support MDI/MDI-X |
| Ethernet Features | Flow Control (802.3 x) Green Ethernet (EEE) Port Auto Power Saving Dynamic Link Aggregation (802.3 ad)/ Static Port Aggregation 802.1 p, 802.1 Q Cable Diagnostics STP (802.1 D)/ RSTP (802.1 w)/ MSTP (802.1 s) TC snooping BPDU protection / Root protection / Loopback protection / Protection against TC-BPDU attacks |
| IPv4 | ARP DHCP Client |
| multicast | Support IGMP V1/V2/V3 Snooping Supports fast leave mechanism |
| QoS | Support Diff-Serv QoS Support SP/WRR/SP+WRR Traffic Limiting 802.1 p/DSCP priority mapping priority mapping |
| system management | Supports FTP, TFTP, Modems, SFTP file upload and download management. Support SNMP V 1/V2/V3 Support NTP clock Support system work log Support cluster management |
