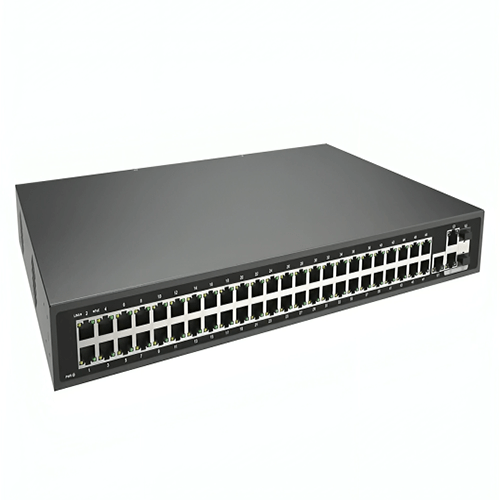

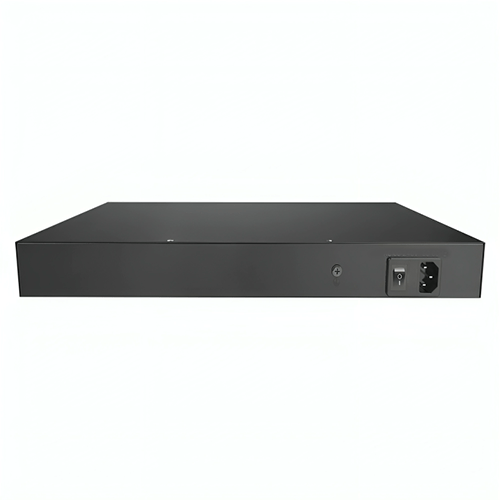

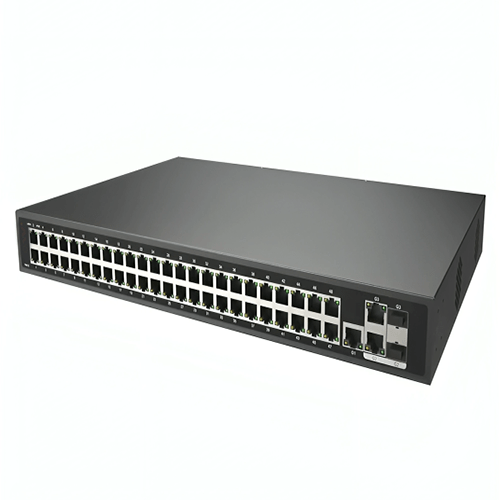

Amuse Tech Solutions Ethernet Smart Network Optical Fiber Switches
This Ethernet Smart Network Optical Fiber Switches has built-in power supply of AC 100 V to 240 V, frequency of 50 Hz to 60Hz, and jumbo frame of 10K.
Description
Features
- All series support “10/100M RJ45 port and gigabit TP/SFP port” combination
- Support non-blocking wire-speed forwarding.
- Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
- 48x 10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
- IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
- Priority system for PoE port, it will supply power to the high priority level port first
Technical Specifications
| Fixed Port | 48 x 10/100Base-TX PoE ports (Data /Power) 3 x 10/100Base-TX RJ45 ports (Data) 2 x 1000Base-X uplink SFP ports (Combo port) (Data) |
| Ethernet Port | 10/100Base-T(X),10/100/1000Base-T, auto-sensing, full/half duplex MDI/MDI-X self-adaption |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP 100BASE-TX: Cat5 or later UTP 1000BASE-T: Cat5e or later UTP |
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X, IEEE802.3x |
| Forwarding Mode | Store and Forward (Full Wire Speed) |
| Switching Capacity | 30 Gbps |
| Forwarding Rate At 64byte | 11.61 Mpps |
| Mac | 16 K |
| Jumbo frame | 10 K |
| Led indicator | Power: PWR (green), Network: link (yellow), PoE: PoE (green), Speed: 1000 (green) |
| Reset Switch | Yes, One-button factory reset |
| Poe port | Port 1 to 48 IEEE802.3af/at @ POE |
| Power Supply Pin | Default 1/2 (+), 3/6 (-), Optional 4/5(+), 7/8(-) |
| Max power Per Port | 30W; IEEE802.3af/at |
| Total PWR / Input Voltage | 600W (AC100 to 240V) |
| Power Consumption | Standby<35W, Full load<600W |
| Power Supply | Built-in power supply, AC 100 to 240 V 50 to 60 Hz 6.6 A |
| Installation | Desktop, 19-inch 1U cabinet |
| Lightning Protection / Protection Level | Lightning protection: 4KV 8/20us; Protection level: IP30 |
| Dimension (L*W*H) | 17.32 in x 11.41 in x 1.75 in (440 mm x 290 mm x 44.5 mm) |
| Weight | 8.37 lb (3.8 kg) |
