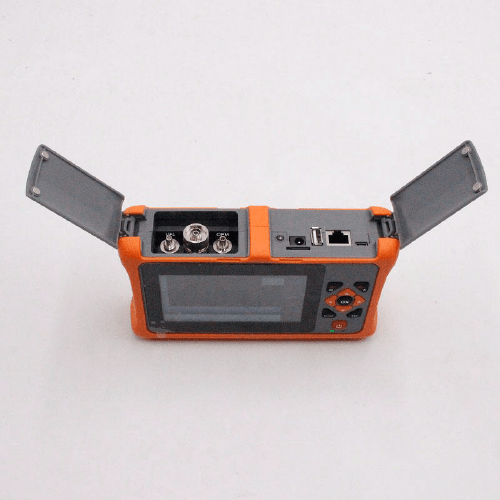

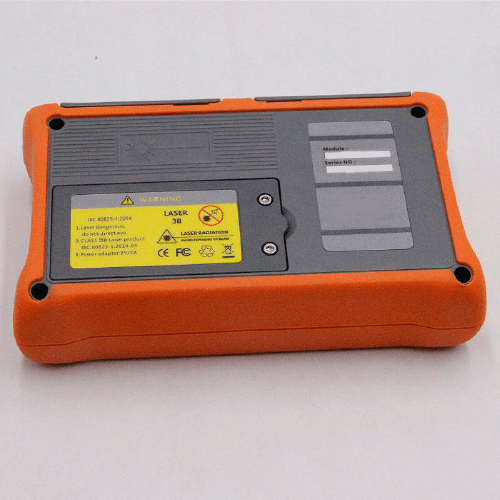

Amuse Tech Solutions Ethernet Cable Tester
This Ethernet Cable Tester has 5200 mAh lithium battery, 4.3 in (10.92 cm) touch screen display, 20 dB to 24 dB dynamic range, and 95% humidity.
Description
Features
- 12-in-one function
- The 4.3 in (10.92 cm) full-view capacitive touch screen
- Cover plate type tempered glass panel
- Support horizontal version, vertical version
- Support charging treasure charging
- Perfect simulation software
- Sink type light port design
- Support U disk, SD card and Micro USB export data protection
- Any interface supports screen capture
Technical Specifications
| Battery | 5200 mAh 3.7 V |
| Dynamic Range | 20 dB to 24 dB |
| Loss Resolution | 0.001 dB |
| Connector Type | FC or UPC (PC, APC Optional) |
| Display | 4.3 in (10.92 cm) touch screen |
| OPM Range | -70 dBm to 10 dBm |
| VFL | 10 MW |
| OPM | Option A: 10 dBm to -70 dBm; Option B: 23 dBm to -50 dBm |
| Power Adapter | Power supply AC or DC adapter, input 100 V to 250 V AC, 50 Hz to 60 Hz, 3 A max, Output 12 V DC. 35 W |
| Data Storage | 100,000 groups of curves |
| Interface | USB A Type × 1, Micro-USB x 1), SD card |
| Working Temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Storage temperature | -4 °F to 176 °F (-20°C to 80 °C) |
| Humidity | Less than 95% (non-condensation) |
| Laser Source | The output power: -5 dBm Modulation frequency: CW or 270 Hz or 1 kHz or 2 kHz |
| Network Cable Test | Support network wire sequence testing and wire alignment |
| Sampling Resolution | Minimum 0.65 ft (0.2 m) |
| Sampling Point | 64,000 points |
| Linearity | Less than 0.05 dB/dB |
| Scale Indication | X axis: 13.12 ft to 229 ft (4 m to 70 m) or div, Y axis: 0.09 dB to 5 dB or div |
| Loss Threshold | 0.01 dB |
| Loss Resolution | 0.001 dB |
| Distance Resolution | 0.39 in (0.01 m) |
| Distance Accuracy | ±(1.64 ft (0.5 m) + Range × 3 × 10 − 5 + Sampling resolution) (Excluding refractive index error) |
| Dimension | 6.88 in x 4.13 in x 1.77 in (175 mm x 105 mm x 45 mm) |
| Weight | 2.42 lb (1.1 kg) including battery |
