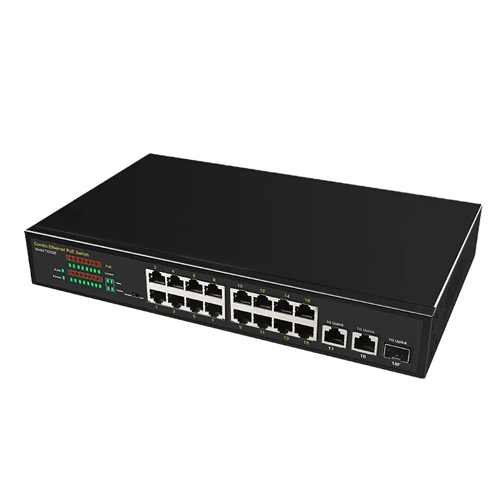

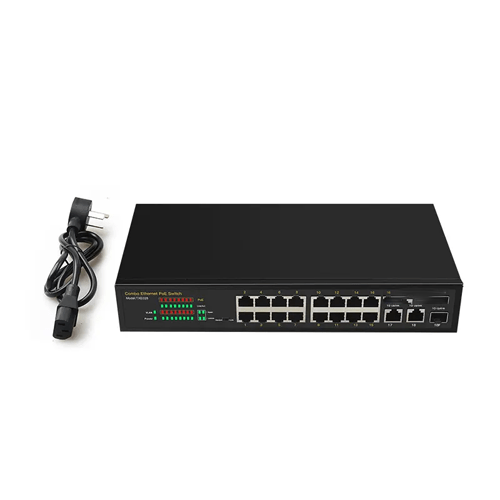

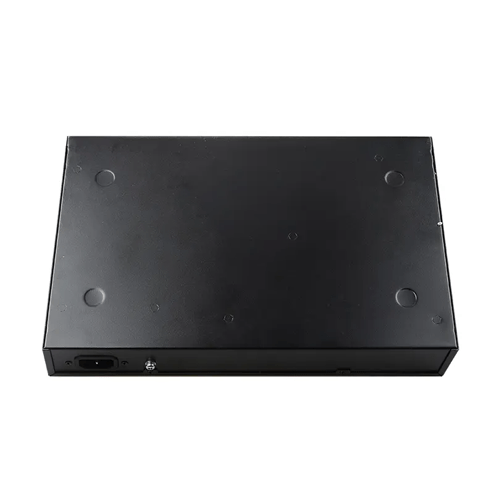

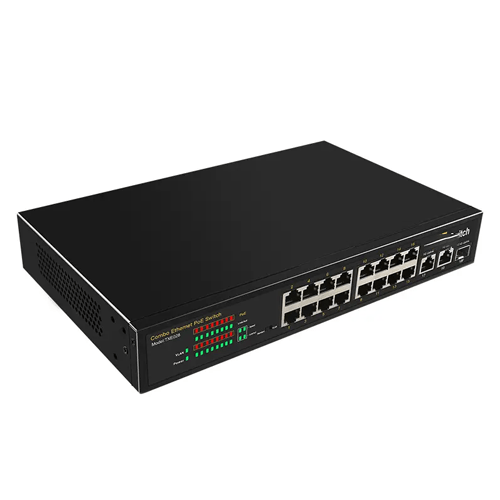

Amuse Tech Solutions Economical Custom Design 16 Ports Poe Switch Ethernet Network Switches
Fanless PoE switch offers 10 copper ports and 16 PoE ports, ensuring reliable connectivity, and efficient power management in various environments.
Description
Technical Specifications
| Thermal Fan | Fan less |
| Copper Port | 10 10 or 100 BASE-TX MDI or MDIX Ports |
| PoE Injector Port | 16-port with 802.3 at or af PoE injector function with Port-1 to Port-16 |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 4 Gbps / non-blocking |
| Switch Throughput at 64 bytes | 1.48 Mpps at 64 bytes |
| MAC Address Table | 16 K entries, automatic source address learning and aging |
| Maximum Frame Size | 1522 bytes |
| Flow Control | IEEE 802.3x pause frame for full duplexBack pressure for half-duplex |
| LED System | Power (Green) |
| 10/100BASE-TX RJ45 interfaces | 10 Mbps or 100 Mbps LNK or ACT (Green) |
| PoE interfaces | PoE-in-Use (Red or Blue) |
| DIP Switch | Selectable operation mode-Standard, VLAN, Extend |
| Enclosure | Metal |
| Power Requirements | 52 V DC, 3.8 A |
| Power Consumption/Dissipation | System On: Max. 2.4 wattsEthernet Full Loading: Max. 5 watts
PoE Full Loading: Max. 120 watts |
| ESD Protection | Contact discharge of 4 KV DC, Air discharge of 6 KV DC |
| Power over Ethernet PoE Standard | IEEE 802.3 af Power over Ethernet / PSEIEEE 802.3 at Power over Ethernet Plus / PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | Per port max. 30 watts |
| Power Pin Assignment | (1 / 2) + (3 / 6) – |
| PoE Power Budget | 120 watts |
| Max. Number of Class 2 PDs | 8 |
| Max. Number of Class 3 PDs | 8 |
| Max. Number of Class 4 PDs | 4 |
| Regulatory Compliance FCC Part | Class A, CE |
| Standards Compliance IEEE Standards | IEEE Standards: IEEE 802.3 uIEEE 802.3 x
IEEE 802.3 af IEEE 802.3 at IEEE 802.3 az Energy Efficient Ethernet (EEE) |
| Operating Temperature | Temperature: 14 °F to 122 °F (-10 °C to 50 °C) |
| Storage Temperature | Temperature: 14 °F to 158 °F (-10 °C to 70 °C) |
| Humidity | 5% RH to 95% RH (non-condensing) |
| Dimensions | 8.67 in x 6.3 in x 1.6 in (22cm)×(16cm)×(4cm) |
