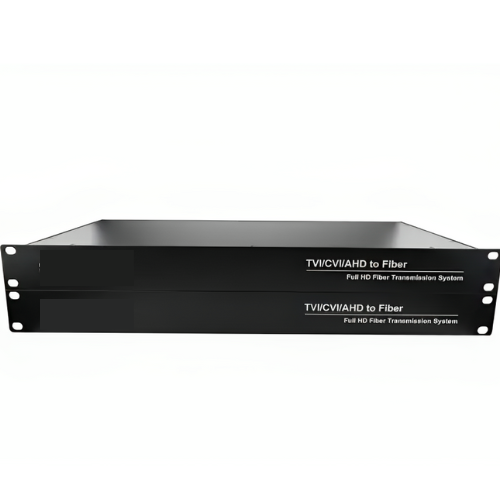

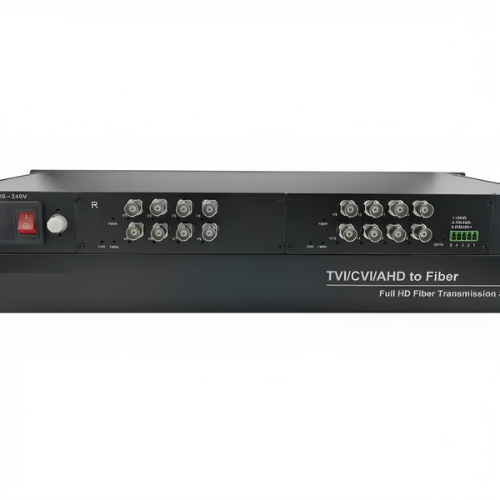

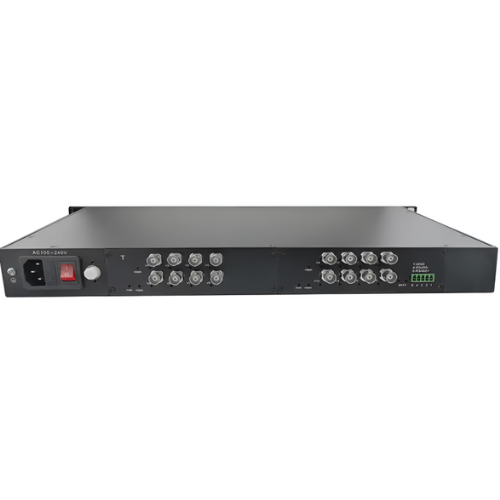

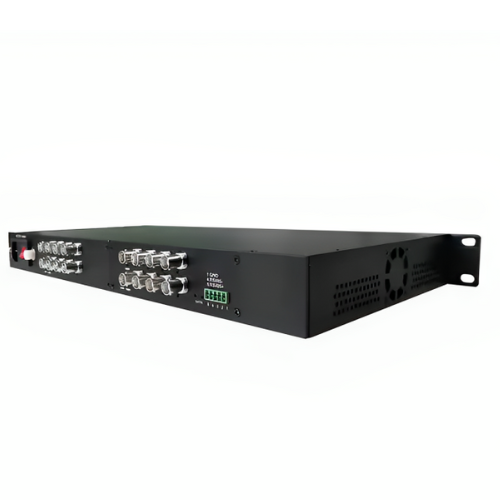

Amuse Tech Solutions CVI Fiber Converter

Description

Overview

Amuse Tech Solutions CVI Fiber Converter adopt the advanced uncompressed HD composite video and high velocity digital optical transmission technologies which convert the HD video composite signals to optical signals to achieve long distance as far as 49.70 mi (80 Km) transmission through fibers.



Features

• Identify TVI, CVI, AHD, CVBS formats automatically in videos
• Transmit 16 channels of video and control data simultaneously
• Advanced lightning protection with 3 kv lightning protection support
• Single-fibre transmission, optional long-distance transmission up to 49.7 mi (80 km)
• Support 1280 P x 720 P or 30 Hz, 1920 P x 1080 P resolution
• Uncompressed real-time transmission for optimal video quality
• Industrial-grade design with SMT process for reliability
• Desktop or centralized card rack installation for simplicity



Technical Specifications

Wavelength	1310 nm or 1470 nm to 1610 nm
Fiber type	Single mode, Single fibre (default)
Distance	0 mi to 49.70 mi (0 km to 80 km)
Fiber Interface	FC (default), ST or SC (optional)
Video Interface Number	16
Physical Interface	BNC
Video input and output impedance	75 Ω (unbalanced)
Input level	> 500 mVp to p
Output level	1 Vp to p
Bandwidth	30 MHz (720 P), 60MHz (1080 P)
Digit bit width	8 bits
Support camera pixels	3-megapixel, 4 megapixels
Video pixel	1280 (H) × 720 (V), 1920 (H) × 1080 (V)
Signal to noise ratio	>60 dB (weighted) (8 bit)
Physical Interface	The industry standard connecting terminal
Interface Signal	RS 485
Baud rate	1200 bit/s to 9600 bit/s
Input Power Requirements	DC 5 V
Power Adapter	AC 100 V to 240 V
Operating temperature	-4 ⁰F to 167 ⁰F (-20 ⁰C to 75 ⁰C)
Storage temperature	-40 ⁰F to 185 ⁰F (-40 ⁰C to 85 ⁰C)
Working humidity	0 % to 95 % (non-condensing)
MTBF	>100,000 hr
Dimensions	19 in x 8.66 in x 1.73 in (48.3 cm × 22 cm × 4.4 cm)
Packing	20.6 in x 13.62 in x 7.12 in (52.4 cm × 34.6 cm × 18.1 cm)
Weight	11.02 lb (5 kg)
