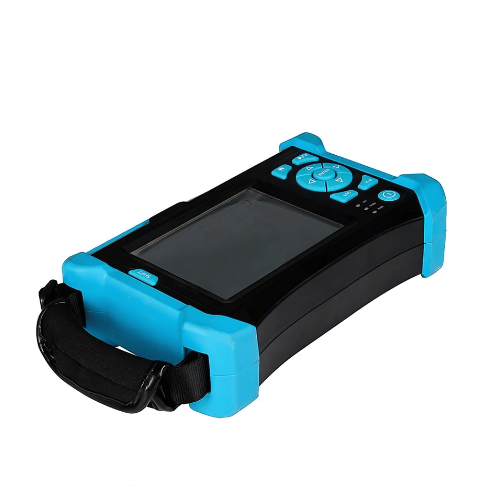

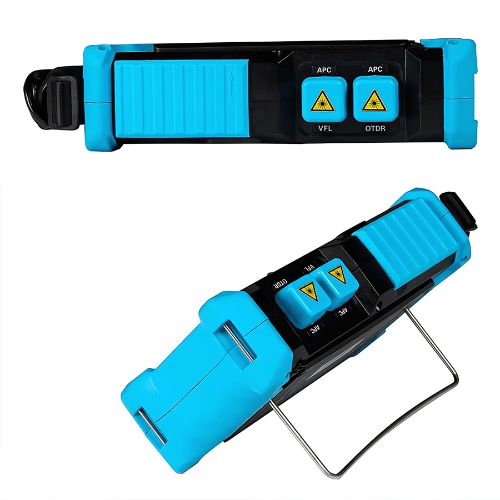

Amuse Tech Solutions Cooper Ethernet Tester
This Cooper Ethernet Tester has a sampling point of 32 K, a Loss threshold f 0.05 dB, and a display of 5.6 in LCD touch screen.
Description
Features
- Large touch screen + shortcut keys, easy to operate
- Large-capacity polymer lithium battery, with superlong working hours
- Intelligent testing, simple use, powerful function
- Media of Memory Card + SD card, with superlarge storage capacity of traces
- Able to meet FTTx testing needs Several wavelengths can be chosen
Â
Technical Specifications
| Wavelength(nm) | 850nm or 1300 nm
21 dB or 19 dB |
| Dynamic Range(dB)² | |
| Push Width(ns) | 5 ns, 20 ns, 40 ns, 80 ns, 160 ns, 320 ns, 640 ns, 1260 ns |
| Event Blind Zone(m)³ | 10 (m)³ |
| Attenuation Blind Zone (m)³ | 20 (m)³ |
| Display | 5.6″ LCD touch screen |
| Linearity(dB) | ±0.05 dB |
| Loss Threshold(dB) | 0.05 dB |
| Loss Resolution Ration(dB) | 0.01 dB |
| Sampling Resolution Ration(m) | 0.01 ft To 26.25 ft (0.125 m to 8 m) |
| Sampling Point | 32 K |
| Distance Uncertainty (m) | ±(1 m+5×10×distance+sampling interval) JDSU PON OTDR 1310 1550 1650nm OTDR JDSU MTS-6000 Price |
| Distance Scope(km) | 0.186 mi to 111.85 mi (0.3 km to 180 km) |
| Typical Real-Time Refreshing Duration(s) | 0.2 s |
| Memory Capacity Of Trace | SD Card(4G) ≥ 1000 pcs |
| Duration Of Measurement | Defined by users: 5 s 10 s 15 s 30 s or 1 min 2 min 3 min |
