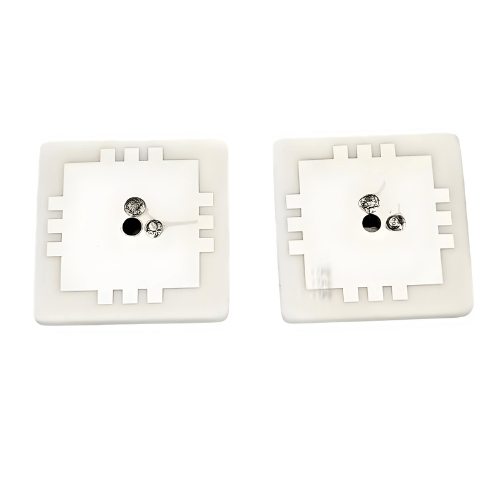

Amuse Tech Solutions Antennas Customized Single Feed Full Band Reader Directional Ceramic Patch-Ceramic Base Material
UHF RFID 900-928Mhz Antennas with a ceramic base, tin-plated copper pin and silver-plated surface and ground plan.
Description
Meta Description
UHF RFID 900-928Mhz Antennas with a ceramic base, tin-plated copper pin and silver-plated surface and ground plan.
Features
- Ceramic base material
- Copper with tin plated PIN
- Silver plating radiant surface
- Silver plating ground plan
Technical Specifications
| Receiving Frequency Range | 900 MHz to 928 MHz |
| Center Frequency | 915 MHz |
| Bandwidth | 28 MHz |
| Gain | 3 dBi |
| Axial Ratio | ≤ 3.0 DB |
| Polarization | Circular polarization |
| Impedance | 50 Ohms |
| Frequency temperature coefficient | 20 maximum |
| Working Temperature | – 4 °F to 158 °F (- 20 ℃ to + 70 ℃) |
| Dimension | 1.57 in x 1.57 in x 0.28 in (40 mm x 40 mm x 7 mm) |
