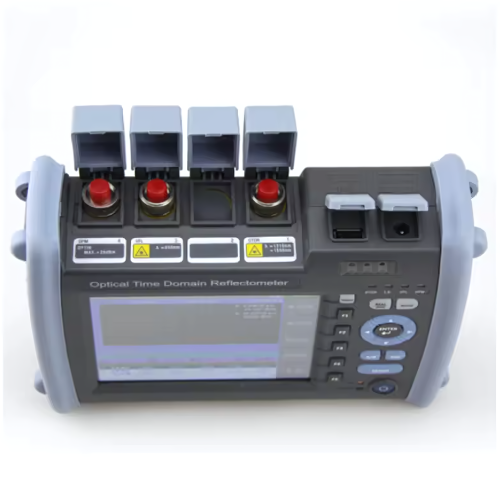

Amuse Tech Solutions Active Fiber Optic Tester
Amuse Tech Solutions Active Fiber Optic Tester is mainly used to measure the parameters of optical fibers and cables,such as length,loss, and connection quality, etc.
Description
Overview
Amuse Tech Solutions Active Fiber Optic Tester is mainly used to measure the parameters of optical fibers and cables,such as length,loss, and connection quality, etc. It can realize the accurate positioning of event points and fault points,and can be widely used in the construction,maintenance testing and emergency repair of the optical fiber communication systems as well as the research,production and production measurement of optical fibers and cables and so on. This now OTDR also combine the OPM,OLS AND VFL module,to provide you with the highest performance of solutions for installation and construction of fiber optical network construction and the subsequent and efficient maintenance and troubleshooting testing.
Features
- Combine the OPM, OLS, VFL, and OTDR in one tester
- Simplest interface and intuitive operation
- Unique dual operation mode of key plus touch screen
- One key analysis
- With circulate, isolatoe, and filter which realize the online testing
Technical Specifications
| Display | 5.6 in colour LCD, touch screen |
| Calibration Wavelength | 850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm, 1650 nm |
| Dynamic Range | 38 dB per 36 dB |
| Dead Zone (Event) | 1 m (3.28 ft) |
| Dead Zone (Attenuation) | 6 m (19.68 ft) |
| Measurement Range | +26 dBm to -50 dBm or 6 dBm to -70 dBm |
| Pulse Width | 5 ns, 10 ns, 50 ns, 160 ns, 320 ns, 500 ns, 1000 ns, 5000 ns, 10000 ns, 20000 ns |
| Range Accuracy | ± (0.75 m(2.46ft) + sampling interval + 0.005% x distance) |
| Attenuation Measurement Accuracy | ±0.05 dB per dB |
| Reflection Measurement Accuracy | ±3 dB |
| Data Storage | ≥2000 |
| Optical Interface | FC, PC (SC interchangeable) |
| Data Interface | USB, mini USB, 10 M, 100 M LAN |
| Output Power | 10 mW |
| Power Supply Mode | AC 100 V to 240 V (0.6 A), 50 Hz per 60 Hz DC 18 V to 20 V (2 A), Internal lithium ion battery pack 7.4 V, 6700 mAh |
| Relative Humidity | 0% to 95% no condensation |
| Operation Temperature | 23 oF to 122 oF (-5 oC to 50 oC) |
| Storage Temperature | -4 oF to 158 oF (-20 oC to 70 oC) |
| Volume | 8.93 in x 6.29 in x 2.75 in (227 mm x160 mm x 70 mm) |
| Weight | ≤ 2.42 lb (1.1 kg) |
