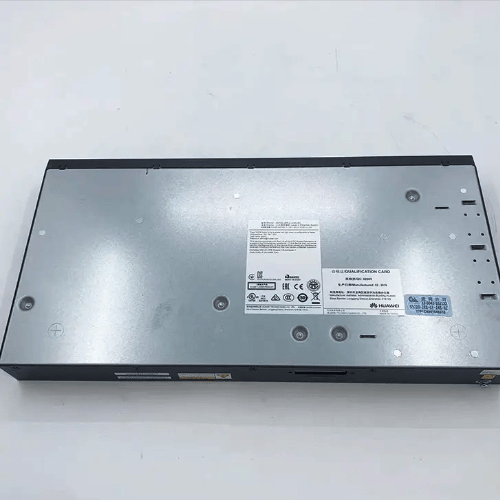

Amuse Tech Solutions AC Layer Ethernet Switch
Amuse Tech Solutions AC layer ethernet switch offers 24 GE SFP ports, 8 1000 BASE-T combo ports, and 4 10 GE SFP+ ports with 1 AC power supply.
Description
Overview
Amuse Tech Solutions AC layer ethernet switch offers 24 GE SFP ports, 8 1000 BASE-T combo ports, and 4 10 GE SFP+ ports with 1 AC power supply. It boasts a forwarding performance of 108 Mpps, a switching capacity of 336 Gbps, and accommodates 16K MAC address entries. This energy-efficient gigabit Ethernet switch is designed for flexibility, supporting intelligent stacking, versatile Ethernet networking, and robust security control. It provides an environmentally friendly, easily managed, scalable, and cost-effective solution for desktop gigabit connectivity.
Features
- 24 GE SFP
- 8 1000 BASE-T
- 4 10 GE SFP+
- Single AC power supply
- High forwarding performance
- Large switching capacity
- Supports intelligent stacking
- Flexible networking and security
- Green, easy-to-manage
- Cost-effective gigabit solution
Technical Specification
| Fixed port | 24 Gig SFP ports (8 of which are dual-purpose 10 / 100 / 1000 Base-T or SFP ports), 4 10 GE SFP+ ports |
| Forwarding performance | 108 Mpps |
| MAC address table | Interface-based MAC learning limiting16 K MAC address entries
MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses |
| VLAN | 4 K VLANsGuest VLAN and voice VLAN
GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1: 1 and N: 1 VLAN Mapping |
| Wireless AC | AP access control, AP domain management, and AP configuration template management Radio management, unified static configuration, and dynamic centralized management WLAN basic services, QoS, security, and user management CAPWAP, Tag / terminal location, and spectrum analysis |
| Jumbo frame | 10 K |
| IP routing | Static routes, RIP, RIPng, OSPF |
| IPv6 features | Neighbor Discovery (ND)Path maximum transmission unit (PMTU)
IPv6 Ping, IPv6 Tracert, and IPv6 Telnet ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports or protocol types Multicast Listener Discovery (MLD) v1 / v2 snooping |
| Multicast forwarding | IGMP v1 / v2 / v3 snooping and IGMP fast leaveMulticast forwarding in a VLAN and multicast replication between VLANs
Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics collection |
| QoS/ACL | Rate limiting on packets sent and received by an interfacePacket redirection
Broadcast storm control Port-based traffic policing and two-rate and three-color CAR Eight queues per port, Weighted round robin (WRR), deficit round robin (DRR), strict priority (SP), WRR+SP, and DRR+SP queue scheduling algorithms Weighted random early detection (WRED) Re-marking of the 802.1p priority and DSCP priority Packet filtering on Layer 2 to Layer 4, filtering out invalid frames based on the supremacy address, destination MAC address, source IP address, destination IP address, TCP / UDP source / destination port number, protocol number, and VLAN ID Rate limiting in each queue and traffic shaping on interfaces |
| Security features | Hierarchical user management and password protectionDoS attack defense, ARP attack defense, and ICMP attack defense
Binding of the IP address, MAC address, interface number, and VLAN ID of a user Port isolation, port security, and sticky MAC MAC Forced Forwarding (MFF) Blackhole MAC address entries Limit on the number of learned MAC addresses IEEE 802.1 x authentication and the limit on the number of users on an interface AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NACSSH v2.0 Hypertext Transfer Protocol Secure (HTTPS) CPU defense; Blacklist and whitelist; MACSec ready; DHCP relay, DHCP server, DHCP snooping DHCPv6 relay, DHCPv6 server, DHCPv6 snooping |
| Reliability | VRRP, VRRP for BFD, VRRP6EFM OAM (802.3 ah)
CFM OAM (802.1 ag) ITU-Y.1731 DLDP LACP |
| Super Virtual Fabric (SVF) | Working as an SVF client that is plug-and-play with zero configurationAutomatically loading the system software package and patches of clients One-click, and automatic delivery of service configurations
Supports independent running client |
| Management and Maintenance | iStackVirtual Cable Test (VCT)
Remote configuration and maintenance using Telnet SNMPv1 / v 2c / v3 RMON web-based NMS HTTPS LLDP/LLDP-MED System logs and multi-level alarms 802.3 AZ EEE Dying Gasp (S5720-X-LI, S5720-TP-LI series) |
| Interoperability | Supports VBST (Compatible with PVST/PVST+/RPVST)Supports LNP (Similar to DTP
Supports VCMP (Similar to VTP) |
