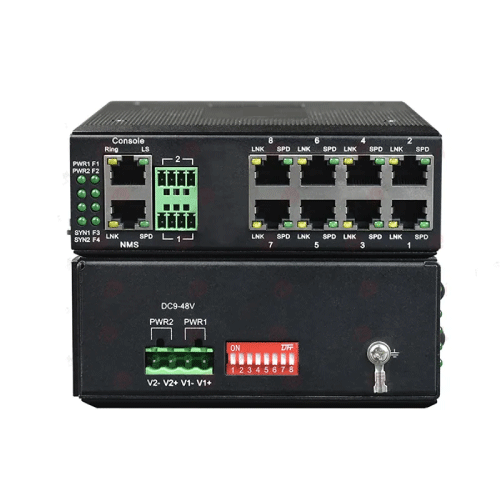

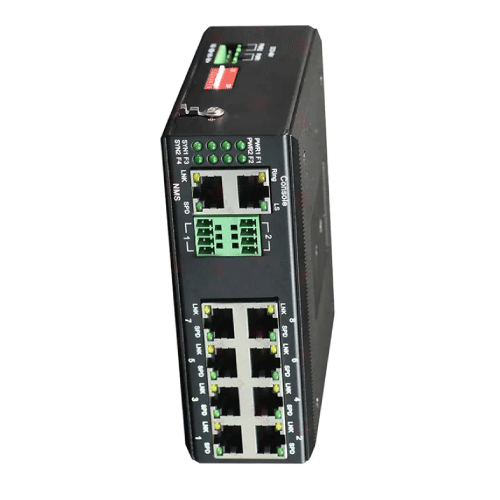

Amuse Tech Solutions 8 Ports Gigabit Ethernet Switch
Amuse Tech Solutions 8 ports gigabit ethernet switch is an industrial-grade 8-port 10/100/1000M switch.
Description
Overview
Amuse Tech Solutions 8 ports gigabit ethernet switch is an industrial-grade 8-port 10/100/1000M switch. This product provides 8 Gigabit electrical ports; it has a complete alarm function, and the whole machine works stably and reliably, with low power consumption, high integration, and small size. There are two installation methods: 35mm industrial rail type and wall-mounted type.
Features
- 8 Gigabit Ethernet electrical ports
- Functions such as crash monitoring and self-reset
- Supports the transmission of VLAN super-long data packets
- Support a wide range of 9-55V AC and DC power input
- Power supply supports overload protection and anti-reverse connection protection
- No fan for efficient heat dissipation, reducing repair time
Technical Specifications
| Rate | 10, 100, or 1000 M adaptive, full or half duplex fully adaptive |
| MAC address table | 4096 MAC addresses can be learned |
| Physical interface | RJ45 socket supports Auto MDIX (crossover or straight-through line adaptation) |
| Redundant dual power input | 9 V DC to 48 V DC power consumption <5 W |
| Overload protection | Support |
| Reverse polarity protection | Support |
| Redundancy Protection | Support |
| Access terminal | 4-core 0.2 lb (5.08 mm) pitch plug-in terminal |
| Working temperature | – 40 °F to 185 °F (- 40 ℃ to 85 ℃) (industrial grade) |
| Working humidity | 0 % to 95 % (non-condensing) |
| MTBF | >100000 hrs |
| Housing | IP40 protection grade, aluminum alloy material |
| Installation method | Rail installation, wall-mounted installation |
| Weight | 1.6 lb (685 g)Â unit |
| Dimensions | 5.24 in x 4.72 in x 1.97 in (13.3 cm x 12 cm x 5 cm) (L x W x H) |
