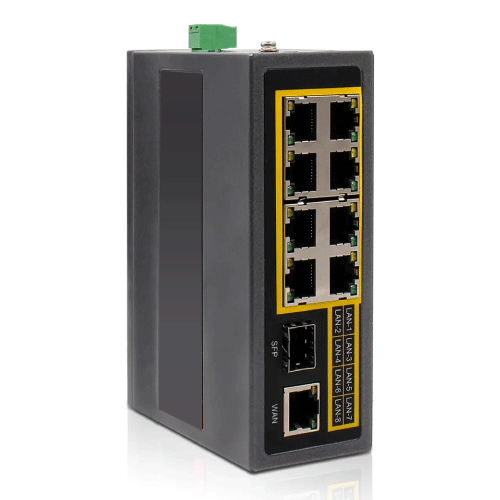

Amuse Tech Solutions 8 Port Gigabit Industrial Ethernet Switch
Amuse Tech Solutions 8 Port Gigabit Ethernet Switch has 8 x 10 / 100 M ethernet LAN port, 1 x 10 / 100 / 1000 M Base-T ethernet port and 1 x 1000 M Base SFP slot
Description
Overview
Amuse Tech Solutions 8 Port Gigabit Ethernet Switch has 8 x 10 / 100 M ethernet LAN port, 1 x 10 / 100 / 1000 M Base-T ethernet port and 1 x 1000 M Base SFP slot. It can be used for connecting multiple servers, hubs, repeaters, and devices that provide long distance data and power transmission. It has been widely used in the M2M industry of the IoT industrial chain such as smart grid, intelligent transportation, finance, etc.
Features
- Multiple Servers, Hubs, Repeaters Connecting
- Several Different Standard
- 8 Ethernet LAN Port
Technical Specifications
| Ethernet Standard | IEEE802.3 (10 Base-T） IEEE802.3u (100Base-TX &100Base-FX） IEEE802.3z (1000Base-TX&1000Base-X) IEEE802.3x (Flow control) |
| SFP Slot | Number：1 Type： SFP LC, single or dual (Optional) Rate：1000 Base-X |
| 1000 M Ethernet Port | Number：1 Type： RJ45 Rate：10, 100, or 1000 M Adaptive |
| Power | 0.2 in (5.08 mm) Terminal Block Interface |
| Ethernet Cable | 3937.01 in (100 m) (Standard CAT5 or CAT5e）) 9842.5 in (250 m) (CAT6) |
| Optical Fiber | Support single/dual mode fiber Dual 21653.5 in (550 m) Single 20, 40, 60, 80 or 100 Km |
| Application Level | 2 |
| Processing Type | Store-and-forward |
| Backplane Bandwidth | 3.6 Gbps |
| Packet Forwarding Rate | 2.68 Mbps |
| Mac Table Size | 2K |
| IP Rating | IP 30 |
| Color | Black |
| Weight | 1.08 lb (490 g) |
| Dimension | 5.31 in x 4.56 in x 1.77 in (13.48 cm x 11.57 cm x 4.5 cm) |
