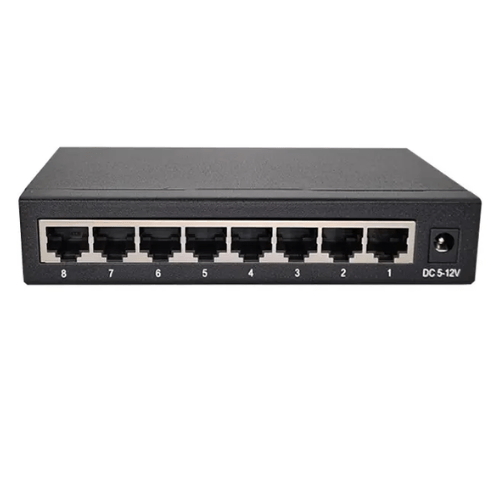

Amuse Tech Solutions 8-port 10/100/1000mbps Gigabit Smart Ethernet Network Desktop Router Switch

Description

Overview

Amuse Tech Solutions smart gigabit ethernet desktop Switch supports 10 Mbps / 100 Mbps / 1000 Mbps auto-negotiation on each port, and all ports support auto-sequence crossover function, which makes line connection simple and plug-and-play. This product will provide you with affordable, easy-to-use, high performance, seamless connectivity, simple to use and good performance. 1000 Mbps full-duplex data transmission network service with seamless connectivity. Designed for small workgroups and desktop computers. It is the ideal choice for you to build an economical, stable, and fast network.



Features

• Enterprise level switch
• All ports have wire-speed forwarding capability
• Automatic port flipping
• Suitable for enterprises, villas, families, studios
• Cold rolled steel shell
• Ultra-low calorific value
• Indicators Monitor port operating status in real time
• Strong heat dissipation to ensure stable operation of the machine



Technical Specifications

Protocol standard	IEEE 802.3 UIEEE 802.3 AB IEEE 802.3 X
Interface	8 10 or 100 or 1000 M adaptive RJ45 ports (Auto MDI or  MDIX)
Network media	10 BASE – T: Type 3 or more UTP100 BASE – TX: type 5 UTP 1000 BASE – T: Super class 5 or class 6 UTP
Forward rate	10 Mbps: 14880 pps, 100 Mbps: 148800 pps, 1000 Mbps: 1488095 pps
The back of bandwidth	16 Gbps
The MAC address table	8 K
LED	Power (Power supply), Eight 1000 M status indicators, Eight Link / Act status indicators
The power supply specifications	5 V 1 A
Operating temperature	32 °F to 158 °F (0 °C to 70 °C)
Storage temperature	– 40 °F to 122 °F (- 40 °C to +50 °C)
Operating humidity	10% RH to 90% RH non-condensing
Storage humidity	5% RH to 90% RH non-condensing
Dimensions	5.75 in x 3.15 in x 1.06 in (14.6 cm x 8 cm x 2.7 cm)
