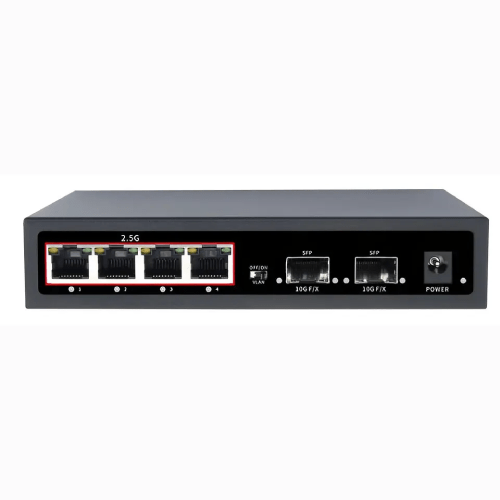

Amuse Tech Solutions 4 Port Gigabit Unmanaged Fiber Ethernet Switch For Office And Home

Description

Overview

Amuse Tech Solutions 4 Port Gigabit Unmanaged Fiber Ethernet Switch For Office And Home are 2.5G Ethernet switch designed for high forwarding network environment such as school, family, SMEs and mini monitoring. It has 4*2.5Gbps adaptive Ethernet ports. All ports support wire-speed forwarding and the data rate is up to 2.5Gbps. There is 4K lightning protection to ensure smooth and stable operation. Auto MDI/MDIX is also available. No configuration is required; it will instantly operate as soon as you power it up.



Features

• Complete LED Indicator Lights
• IEEE 802.1 d Spanning Tree Support
• Wire-Speed Switching for 64 to 1518 Frame Lengths
• High-Performance QoS Functionality
• Multicast Support for Network Congestion Management
• Wide Voltage Input Range
• 4 K Lightning Protection for Each Port
• Plug-and-Play Operation with No Configuration Required
• Low-Power Consumption Design



Technical Specifications

Standards	IEEE 802.3 10Base-T IEEE 802.3 u 100Base-TX/FX IEEE 802.3 x Flow control IEEE 802.1 p QoS IEEE 802.1 d Spanning Tree
Ethernet Port	Connector: 4 x 2.5 G RJ45 port Connector: 2 x 10GSFP slot Data Rate: 2.5 Gbps Distance: 3937 in (10000 cm) UTP Type: UTP-6 E or higher level
Performance	Processing Type: Store and forward Transmission Mode: alf-duplex with auto-negotiation function Back bandwidth: 60 G Time Delay: ＜150 μs
Power	Power Type: external power supply Input Voltage: AC 100 V to 240 V ; 50 hz or 60 hz  Connector: DC Socket Working Voltage: 12 V
Environment	Storage Temperature: -40 °F to +158 °F (-40 ℃ to 70 ℃) Operating Temperature: 14 °F to +131 °F (-10 ℃ to 55 ℃) Relative Humidity: 5 % to 90 % (no condensation)
Warranty	2 years
Physical Characteristics	Dimension: 6.29 in × 4.33 in × 1.29 in (16 cm × 11 cm × 3.3 cm) Colour: Metal, Black
