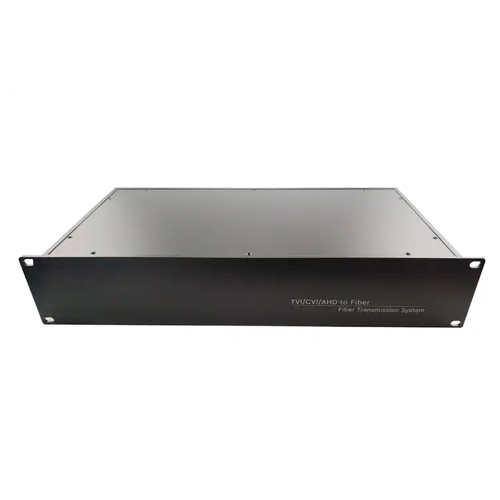

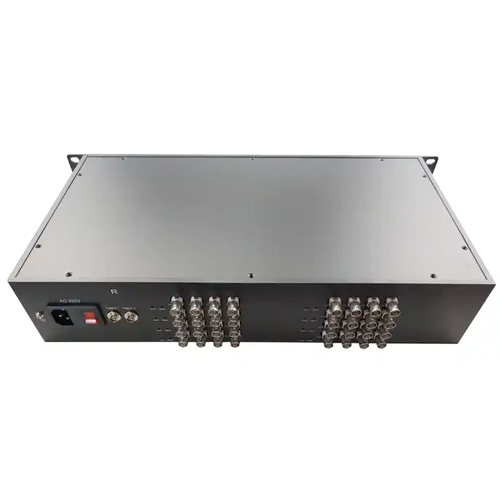

Amuse Tech Solutions 32-Channel Current Analogue
Amuse Tech Solutions 32-channel current analogue has advanced uncompressed HD composite video and high velocity digital optical transmission technologies which convert the HD video composite signals to optical signals to achieve long distance (as far as 49.7 mi (80 Km)) transmission through fibers.
Description
Overview
Amuse Tech Solutions 32-channel current analogue has advanced uncompressed HD composite video and high velocity digital optical transmission technologies which convert the HD video composite signals to optical signals to achieve long distance (as far as 49.7 mi (80 Km)) transmission through fibers.
Features
- Auto Identify Video Formats: TVI, CVI, AHD, CVBS
- Coaxial Cable: Transmit 32 Channels + Control Data
- Lightning Protection: Advanced 3 kV Design
- Single Fiber Transmission: Options – 12.4 mi (20 km), 24.9 mi (40 km), 37.3 mi (60 km), 49.7 mi (80 km)
- Real-time Uncompressed Transmission for Optimal Video Quality
- Industrial-grade Design: SMT Process
- Installation Options: Desktop, Centralized Card Rack (2 ways)
Technical Specifications
| Type | FTTx Solutions |
| Use | CCTV SYSTEM |
| Fiber Connector | FC |
| Fiber Type | Single-mode fiber (9 um or 125um) |
| Distance | 24.91 mi (20 Km) |
| Physical Interface | BNC |
| Interface Signal | RS485or RS422 or RS232 or Manchester |
| Operation Mode | Full duplex or half duplex |
| Wavelength | Transmitter: T1310 nm, R1550 nm. Receiver: T1550 nm, R1310 nm. |
| Environmental Temperature | -4 ℉ to 167 ℉ ( -20 ℃ to 75 ℃) |
| Certification | CE RoHS FCC |
| Relative Humidity | 0 % to 95% (no condensation) |
