Amuse Tech Solutions 10 Pt POE Ethernet Switch
Amuse Tech Solutions 10 Pt POE ethernet switch is able to meet the networking needs of large-scale networks.
Description
Overview

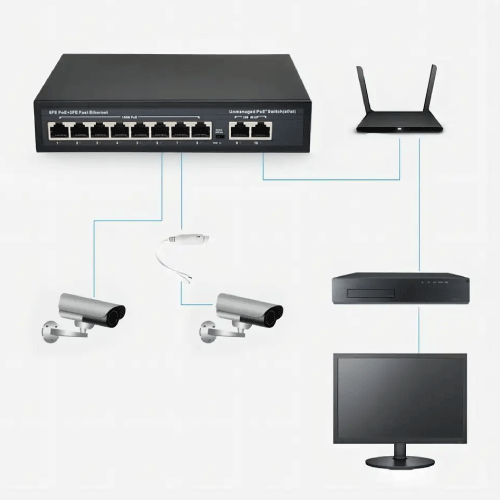

Amuse Tech Solutions 10 Pt POE ethernet switch is able to meet the networking needs of large-scale networks. With advanced hardware processing capability and rich intelligent and security features, it is especially suitable for use as the access equipment for large-scale campus network enterprise networks, IP MANs, Internet cafes and so on.
Features
- 100 Mbps 8 port PoE + 2 links
- Plug and Play
- Intelligent Management
- Lossless transmission
- Store-and-Forward transfer method
Technical Specifications
| Standard Protocol | IEEE 802.10IEEE 802.1X IEEE 802.3ad IEEE 802.3af or at |
| Network Media | 10BASE-T: Unscreened Category 3, 4, 5 twisted pair 100BASE-TX 100BASE-T: Unscreened Category 5 super Category 5 twisted pair |
| Interfaces | 10, 10, or 100 MRJ45 ports (Auto Negotiation or Auto MDI or MDIX), including 8 POE ports. |
| MAC address space | 2K |
| Switching Capacity | 2 Gb |
| Packet Forwarding Rate | 1448 Mpps |
| Packet Cache | 768 Kbits |
| Jumbo frames | 2048 bytes |
| Power supply | Built-in power supply 120 W |
| POE Port Output Power | 30 W (Single port MAX) |
| Static power consumption | 0.3 W (DC 52 V) |
| Power supply pins | (1 or 2) +, (3 or 6)- |
| Speed limit function | Support speed limit 10 M |
| Indicator | Power System (Power: red light) When accessing the load, the indicator status is Open VLAN 10M color No VVLAN 10M red, Link or Activity (Link or Act: green light) When accessing the signal, the indicator status is network and POE connected at the same time orange, POE without network red, network without POE green. Green when there is a network without POE. |
| Operating Temperature | 14 °F to 158 °F (- 10 ℃ to 70 ℃) |
| Storage Temperature | -40 °F to 185 °F (- 40 °C to 85 °C) |
| Operating Humidity | 10 % to 90 % non-condensing |
| Storage humidity | 5 % to 95 % non-condensing |
| Housing Material | Standard hardware housing |
| Case Size | 7.48 in x 4.92 in x 1.50 in (19 cm x 12.5 cm x 3.8 cm) |
Click Here to Download Technical
Documentation (User Manual or Instruction Manual)
