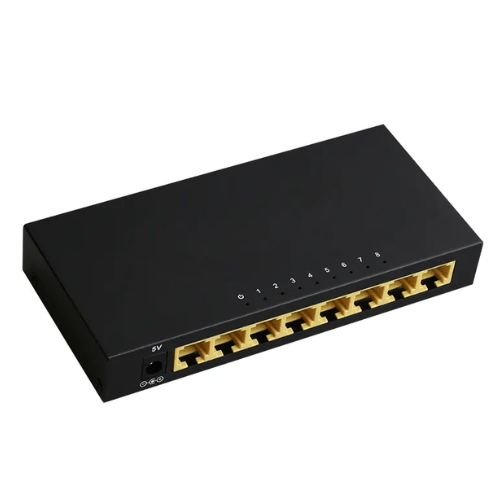

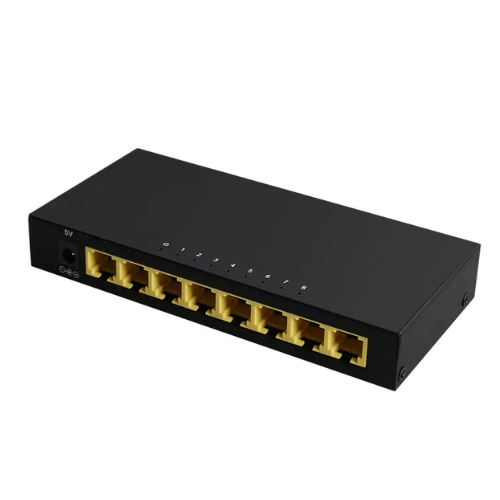

Amuse Tech Solutions 10 /100 M 8 port ethernet switch
The IP 178 G chipset drives this 8-port switch for efficient 10 or 100 Mbps performance. Compliant with IEEE standards.
Description
Technical Specifications
| Chipset | IP 178 G |
| Data rate | 10 Mbps to 100 Mbps |
| Port Number | 8 port 10 or 100 M Auto MDI – MDIX RJ 45 |
| Standard | IEEE 802.3, IEEE 802.3 i, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 az |
| Network media | 10 Base-T: cat3 or above UTP, 10 Base-Tx: cat5 UTP |
| Transfer method | Store-and-forward |
| LED Indicator | 10 or 100 Mbps (Link / Act) |
| Forwarding rate | 10 Mbps or 14,880 pps ,100 Mbps or 148,800 pps |
| Power input | DC 5 V or 500 mA |
| Power consumption | Max 1.7 W |
| Operating Temperature | 32 °F to 131 °F (0 °C to 55 °C) |
| Relative Humidity (Operating) | 10% to 90% (non-condensing) |
| Storage Temperature | – 32 °F to 176 °F (- 0 °C to 80 °C) |
| Relative Humidity (Storage) | 5% to 90% (non-condensing) |
| Dimension | 5.91 in x 2.76 in x 0.79 in (15 cm x 7 cm x 2 cm) |
