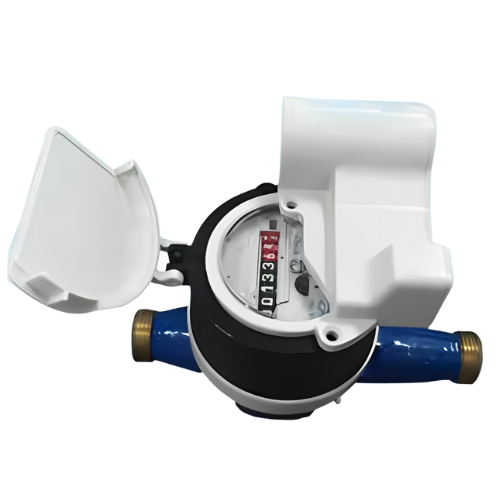

AMR IP68 Waterproof Wired Module for Accurate Water Metering – Amuse Tech Solutions
This water meter features multiple communication interfaces, advanced water protection, and allows efficient management with real-time monitoring.
Description
Features
- Multi-jet water meter
- Upstream leakage detection
- Long battery life
- Multiple communication interfaces
- IP65/IP68 protection
- Horizontal installation
- Reverse flow detection
- Wide temperature range
- ISO4064 compliance
- Customizable reading cycle
Technical Specifications
| Type | Multi-jet meters |
| Max. Permissible Working Pressure, MPa | 1.0 Mpa |
| Detection Alert | Upstream, leakage |
| Power Supply | Battery DC 3.6V, lithium battery 10+1 years lifetime |
| Communication Interface | IrDA, Pulse, M-Bus, wM-Bus, LoRa, NB-Iot |
| Protection Class | IP65/IP68 |
| Type De Water Meter | Dry type |
| Communication | Lora/Mbus |
| Standard | ISO4064 |
| Nominal Diameter, mm | DN15-40 DN50-500 |
| Connection | Threaded joint flanged joint |
| Class of Temp | T30, T70, T90 |
| Pressure Loss at Q3, kPa | P<63Kpa |
| Max.Permissible Working Pressure, MPa | 1.0Mpa |
| Max Reading | 99999 m³ |
| Installation Direction | Horizontal |
| Detection Alert | Reverse flow |
| Date Storage | 18 months |
| Static Consumption | <20µA |
| Communication Interface | IrDA, M-Bus, LoRa, |
| Environmental Class | E1, M1, B |
| Ambient Temp | 41 °F to 131 °F (5 ℃ to 55 ℃) |
| Storage Temp | 4 °F to 140 °F (-20 ℃ to 60 ℃) |
| Meter Standard | ISO4064, OIML R49, EN14154 |
| Communication Standard | EN13757, OMS |
| Distance | 500 m (M-Bus)10000 m (LoRa etc.) |
| Band | 868MHz,470MHz and other ISM band |
| Reading Cycle | 1 time/1 hour (Customizable) |
