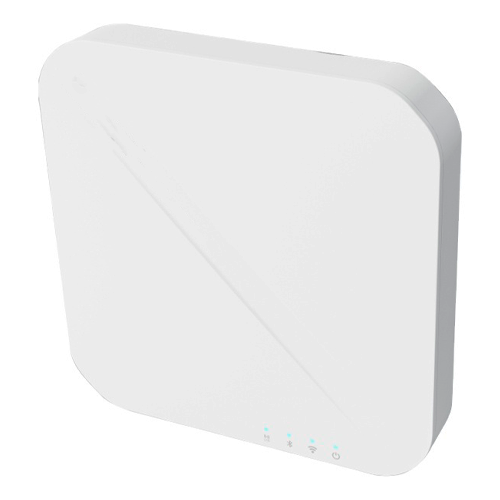

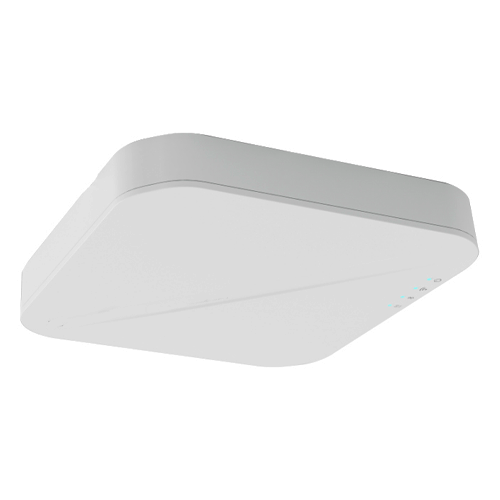

Advanced Zigbee WiFi BLE Gateway with Linux OS Support – Amuse Tech Solutions
Zigbee WiFi BLE Gateway with precise 0.3M positioning, LTE CATM1 connectivity, and 360° antenna array for location tracking and real time performance.
Description
Technical Specifications
| Category | Specifications |
| RAM | DDR4 1GB |
| CPU | PX30 Quad-core CortexA35 |
| eMMC | Up to 8GB |
| OS | Linux |
| Power Supply | USB Type-C 5V or 2A |
| Reset Button | Hole Button, Restores to Factory Settings after 5 sec |
| Switch | On or off Power |
| Network Interface | CAT-5 or CAT-5E for Data and POE (44 to 57V) |
| USB | USB2.0 |
| SIM Card | Micro SIM Card |
| Indicator LEDs | Power & Battery, BLE, Wi-Fi, LTE Indicators |
| Antenna Array Direction | 4X4 Antenna Array |
| Installation Method | Ceiling |
| RTC | Real-time Clock with On-board Battery |
| Cooling | Heat Dissipation via Silicone or Aluminum |
| IP Rating | IP53 |
| Positioning Accuracy | 1 to 3.28 ft (0.3M to 1M) |
| Detect Range | 360° Antenna, 2.4GHz Angle of Arrival Measurement |
| Current | 350mAH at 5V |
| Connector in the Board | PCI Express |
| Debug | 1X Serial Console via UART-to-USB Bridge |
| Serial | 1 RS232, 1 RS485 (2 wires) |
| Expansion Connector | 2SPI, 2UART, I2C, 4 xGPIO |
| Operating Temperature | 14°F to 140°F (-10°C to 60°C) |
| Storage Temperature | -40°F to 185°F (-40°C to 85°C) |
| Operating Humidity | 10%RH to 90%RH |
