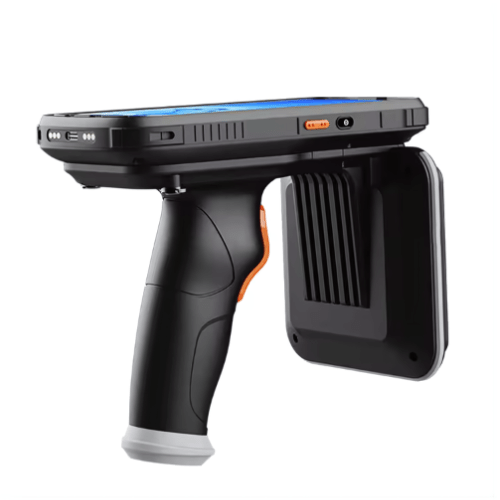

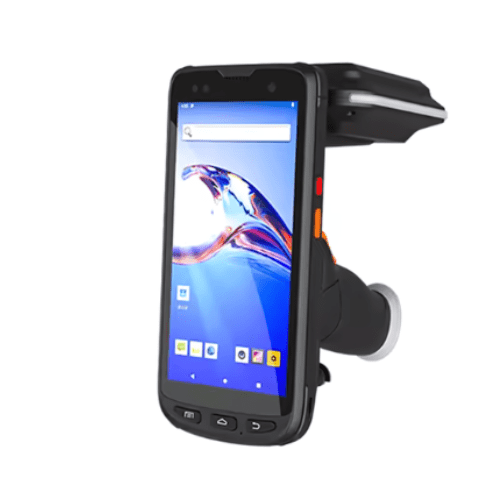

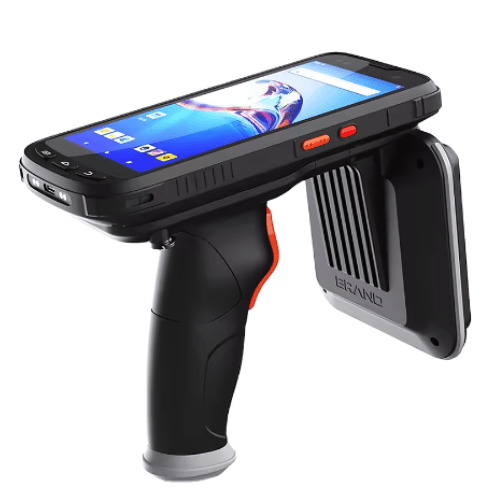

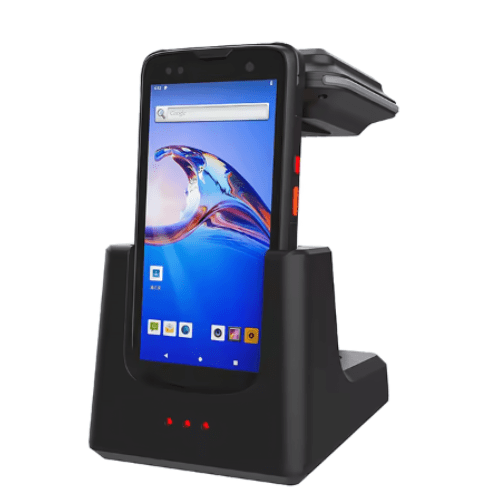

Advanced UHF RFID Handheld Barcode Scanner with Android 10 & 9000 mAh Battery – Amuse Tech Solutions

High-performance RFID reader with Android 10, 200+ tags/sec, 13 MP camera, and 20 m range. Ideal for efficient asset tracking and inventory management.

SKU: ATSUHF-703 Category:

Description

Features

  • Multi-tags read rate > 200 tags per second
  • OS: Android 10.0
  • Reading Distance is (0 m to 20 m)

Technical Specifications

Frequency 865 MHz to 868 MHz or 902 MHz to 928 MHz
Protocol EPC G2 or ISO 18000-6C
Operating System Android 10.0
Battery Capacity 3.8 V 9000 mAh
Interface USB
Drop 1 M
CPU Cortex A73 2.0GHz octa-core
RAM 2 GB or 4 GB
ROM 16 GB or 64 GB
Camera Rear 13 MP AF, high light LED flash, Front 5 MP camera
Screen Gorilla Glass 3 9H 5.5 in (13.9 cm) TFT-LCD
Battery Capacity 3.8 V 9000 mAh Li-ion battery, removeable and rechargeable
Charging PE fast charge, full charged time <2 hrs
Bluetooth BT4.2 BLE
WIFI IEEE 802.11 a/b/g/n/ac 2.4G 5G dual frequency
GPS GPS (embedded A-GPS), accuracy of (5 m) 16.4 ft
Extension Micro SD (TF) card slot up to 256 GB
External Interface USB-Type C, other slots: 1 PSAM, 1 SIM, 1 TF
Keypad Volume button, power button, grip button, function button, home button, return button
Notification Sound, Vibration, LED prompt
Antenna Circular antenna (3 dBi)
Power Working voltage 3.6 V to 5 V, RF output 5 dBm to 33 dbm
Reading Distance 0 ft to 65.6 ft (0 m to 20 m)
Multi-Tags Read Rate > 200 tags per second
Accessories 1 x Power Supply; 1 x Lithium Polymer Batteryï¼›1 x Type-C cable
Drop And Tumble 6 sides multiple drops from the height of 3.2 ft (1 m) to the concrete floor
ESD ±15 kV air discharge，±8 kV contact discharge
Working Humidity 5 % RH to 95 % RH (non-condensing)
Interfaces USB 2.0 Type-C, OTG
RFID (HF) 13.56 MHz, ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2 NFC Reading distance: 0 in to 3.1 in (0 cm to 8 cm)
RFID (UHF) Protocol standard: EPC G2/ISO 18000-6C;
Working frequency: 915 MHz, 865 MHz (865 MHz to 868 MHz or 902 MHz to 928 MHz)
Antenna parameters: Circular antenna (3 dBi)
Power: working voltage 3.6 V to 5 V, RF output 5 dBm to 33 dBm
Standby power consumption is about 0.25 W, maximum 7.5 W (typical 7 W);
Reading distance: 0 ft to 65.6 ft (0 m to 20 m) (depends on environment and tag)
Multi-tags read rate > 200 tags per s
Barcode Scanning Zebra SE4710/ Mindeo ME5600/ Others
Support Code System PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, Maxi Code, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. Etc.
Working Temperature -4 °F to 122 °F (-20 ℃ to 50 ℃)
Storage Temperature -4 °F to 158 °F (-20 ℃ to 70 ℃)
Dimensions 6.5 in X 3.5 in X 1.2 in
(166 mm × 79 mm × 31 mm)
Weight 22.9 oz (650 g)
