Advanced precision High accuracy mechanical Arm Force Measurement Sensor – Amuse Tech Solutions

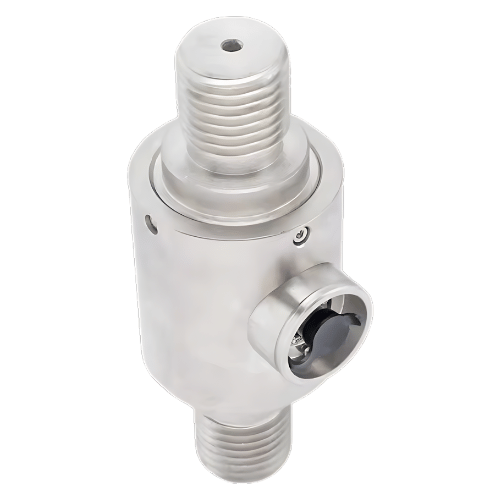

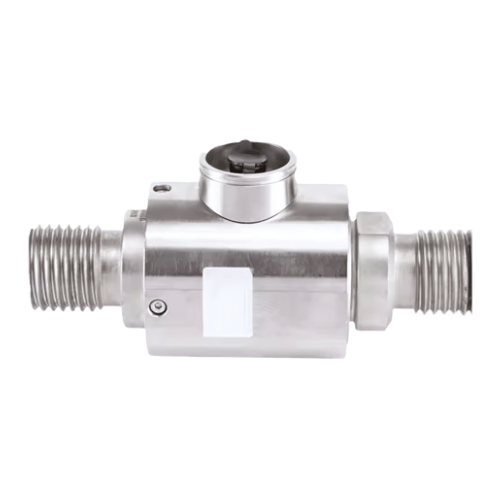

This UNIVO UBWP308Y force measurement sensor for mechanical arms, rated load 100 to 2000 kN, with high precision and temperature stability.
Description
Features
- Hook scale and belt scale
- Hopper scale, storage scale
- Material tank
- Material mechanics testing machine
- labor safety testing equipment
Â
Technical Specifications
| Rated Load | 100 kN to 2000 kN |
| Sensitivity | 1.5 mV/V or 2.0 mV/V |
| Comprehensive Precision | 0.05 to 0.1 % F.S. |
| Creep | ±0.05 % F.S. / 30 min |
| Zero Output | ±1 % F.S. |
| Input Resistance | 380 ± 10 Ω or 750 ± 15 Ω |
| Output Resistance | 350 ± 3 Ω or 700 ± 5 Ω |
| Insulation Resistance | > 5000 MΩ |
| Safe Load Limit | 150 % F.S. |
| Bridge Voltage | Recommendation 10 V DC |
| Material | Alloy Steel |
| Load Cell Mode of Connection | Input+: Red, Input-: Black, Output+: Green, Output-: White |
| Temperature Effect on Zero | ±0.05 % F.S. / 50 °F (10 °C) |
| Temperature Effect on Output | ±0.05 % F.S. / 50 °F (10 °C) |
| Operating Temperature Range | -4 °F to 149 °F (-20 °C to 65 °C) |
