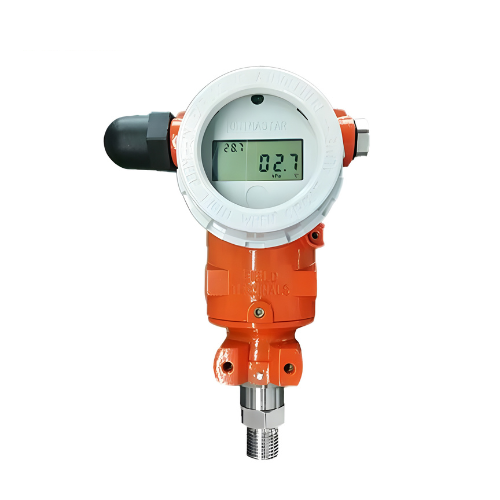

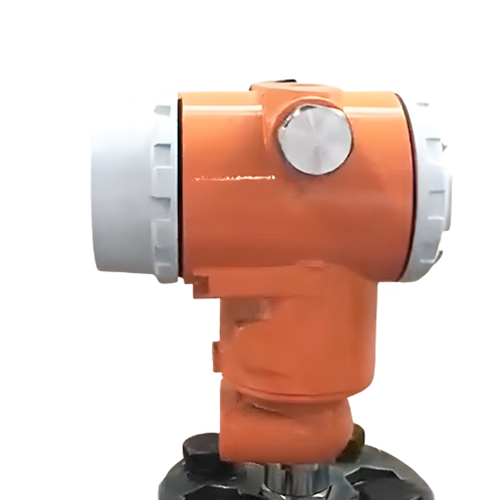

Advanced LoRaWAN Wireless Pressure Temperature Sensor -Amuse Tech Solutions
Discover reliable, low-power wireless monitoring with this rugged LoRaWAN-enabled pressure and temperature sensor, designed for harsh environments.
Description
Technical Specifications
| Working Voltage | 3.3 V to 3.6 VDC |
| Battery Life | ≥ 2 years |
| Maximum Working Current | < 300 mA |
| Sampling Interval | 10 min |
| Pressure Range | 0 to 15 MPa (0 to 2175 psi) |
| Pressure Accuracy | ±0.5% FS |
| Temperature Accuracy | ±1.5 °F (±1.5 °C) |
| Pressure Connection | G1/2 |
| Housing Material | Aluminum Alloy |
| Ingress Protection | IP65 |
| Ambient Temperature Range | -4 °F to 185 °F (-20 °C to 85 °C) |
| Storage Temperature Range | -40 °F to 185 °F (-40 °C to 85 °C) |
| Housing Dimensions | 6.1 in x 5.1 in x 7.9 in (15.5 cm x 12.9 cm x 20 cm) |
| Antenna Type | Rod Antenna |
| Weight | 1.1 lb (0.5 kg) |
| Temperature Range | -22 °F to 302 °F (-30 °C to 150 °C) |
| Antenna | Rod antenna |
| Working Voltage | 3.3 to 3.6VDC |
| Battery Life | ≥ 2 years (3.6V lithium battery, ER26500 – 9AH, See Note 1) |
| Sampling Interval | 10 minutes (Configurable) |
| Pressure Range | 0 to 15 MPa (Optional) |
| Pressure Accuracy | ±0.5%FS (Customizable) |
| Pressure Connection | G1/2 (Customizable) |
| Explosion Proof | ExdIIBT5 Gb (Evidence collection as required) |
| Operating Humidity | 10% to 90% |
| IP Rating | IP22 |
| Cooling | Heat dissipation silicone/aluminum |
| Power Consumption | 500mA@5V |
