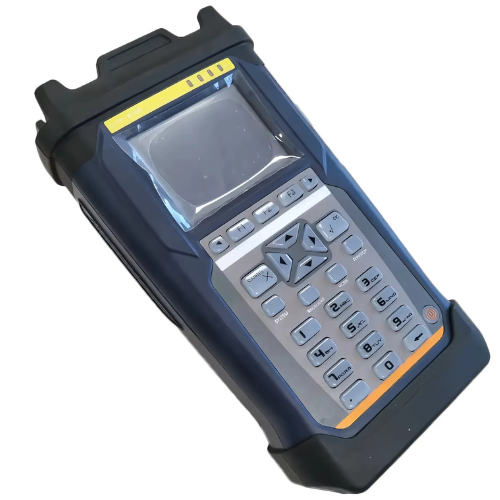

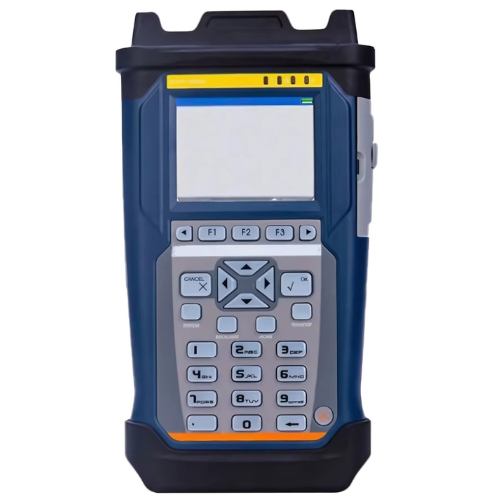

Advanced Handheld Gigabit Ethernet Analyzer Tool - Amuse Tech Solutions
Advanced Handheld Gigabit Ethernet Analyzer Tool - Amuse Tech Solutions - Image 2

Advanced Handheld Gigabit Ethernet Analyzer Tool – Amuse Tech Solutions

Discover a handheld Gigabit Ethernet analyzer with full-duplex support, dual ports, and SLA verification. Ideal for network troubleshooting

SKU: ATSET-135 Category:

Description

Features

  • Full-duplex 10/100/1000 Mbps Ethernet
  • RFC2544: Throughput, Latency, Frame Loss
  • Optional Y.1564, SLA Verification
  • L1/L2/L3/L4 BERT Testing
  • Generate 8 Streams: MAC to Bandwidth
  • Flow Priority: CoS, ToS/DSCP
  • Online Filtering and Packet Capture
  • Dual-Port Function and SDT Support
  • Graphical Test Result Display
  • Metro Ethernet Service Verification
  • Gigabit Ethernet Installation & Troubleshooting



Technical Specifications

Type Gigabit Ethernet Tester
Use ftth
Network TCP, GPRS, WiFi
Screen 3.5 in (8.89 cm) TFT touch screen (320 × 240)
USB USB20, type A, 1
USB2.0, type B, 1
Ethernet 10/100M Base-T, RJ45
Storage 128 MB
Ethernet Feature Auto negotiation, full and half duplex, flow control
Configuration Monitor or generate, pass-through
Multi Stream Number of streams: up to 8 streams per port can be activated
Error Injection FCS, IP check sum error, CRC4 error, bit error
Performance Statistics Utilization, throughput, frame rate
Transmit Statistics Total frames, unicast or multicast or broadcast
Battery Rechargeable Li-Ion battery
Working time: 8 hours Charging time: <3 hours (typical: 77 °F (25 °C))
Power Supply Input: 100 V to 240 V AC, 50 Hz to 60 Hz, 2A Output: 15 V DC, 2 A
Port Electrical interface: 2 ports 10/100/1000M BaseT
Optical interface: 2 ports, 100/1000M BaseX
Users select-able optical module: 850 nm, 1310 nm, 1550 nm
Encapsulation Ethernet type II, IEEE802.3 with 802.2, IEEE802.3 with SNAP
Traffic Generation
  • Variable line rate traffic generation, up to full line rate
  • Traffic generate mode: continuous, burst, ramp, n-frame, n-burst, n-ramp
  • Adjustable frame size: 38 bytes to 16000 bytes
  • Frame size: constant, iMAX, random
  • User-defined traffic mix of unicast and broadcast frames
  • Fixed or increment MAC/IP identifier
  • User programmable DSCP/TOS byte
  • Configurable IP and Ethernet source and destination addresses (support IPv4 and IPv6 addressing)
  • User programmable TCP/UDP address
  • Generate pause frames, respond to pause frames
  • Answer incoming ARP, Ping requests (ON/OFF)
Stacked VLAN
  • Up to 3 user-settable VLAN tags
  • Parameters per VLAN tag
  • Ethernet type II 0x8100 (802.1Q), 0x88a8 (802.1ad), 0x9200, 0x9200, or 0x9300
  • User-defined VLAN ID, CFI, VLAN priority
Multi Stream Number of streams: up to 8 streams per port can be activated
Alarm Generation No link
Status
  • Link status, interface type, jabber detected, frames present, MPLS/VLAN, speed, full or half duplex, signal present, bit rate of incoming Ethernet signal, auto negotiation complete
  • Link partner abilities: speed or duplex
  • Indicators of utilization, throughput, error-ed frames
  • Signal level indication for optical Etheret interfaces
Performance Statistics Utilization, throughput, frame rate
Frame Statistics
  • Total frames, total testing frames, total not testing frames, uni-cast or multicast or broadcast frames, number of pause frames
  • Total VLAN frames
  • Total MPLS frames
  • Total error-ed framed, number of oversized, normal, and runt frame, number of FCS error-ed
Frame Distribution Statistics
  • Total valid/frames, <64, 64-127, 128-511, 512-1023, 1024-1518, >1518
Multi stream Display information per steam:

  • Frame loss count/rate, throughput, latency, packet jitter, frames and bytes received and  transmitted
Transmit Statistics Total frames, unicast/multicast/broadcast
Filter Filter condition support:

  • Source and destination MAC/IP, IPv6, VLAN ID and VLAN Priority, MPLS, IP TOS, TCP/UDP source and destination port, Ethernet type and IP protocol
BER Test
  • Generation and detection of test pattern, count of errors in received test pattern
  • Pattern generation: layer 1 to layer 4
  • Frame loss count and frame loss seconds
  • BER measurement results
  • Test pattern: PRBS9, PRBS11, PRBS15, PRBS20, PRBS23, PRBS31, CRPRJ, JTPAT, SPAT, 32 bits user defined
Service Disruption Test Service disruption test activated as part of BER test:
Max/avg service disruption test,resolution: 0.1µs Number of service disruption
Loopback Test
  • Layer 1 to layer 4 loopback test
  • Advanced loopback test
  • Packet loss setting: percentage, packet count, time
  • Loopback drop enable protocol loss, protocol pass, control, CRC error, IP/TCP/UDP error
Pass Through Test
  • Pass through monitoring function between 2 × 1GE electrical or 2 × 1GE optical ports
  • Advanced pass-through test
  • Packet loss setting: percentage, packet count, time
  • Pass through drop enable protocol loss, protocol pass, control, CRC error, IP/TCP/UDP error
Jitter Test G.711, G.723.1, G.729 and so on VoIP packet jitter test
Jitter result: hits, min, max, current, average
RFC2544 Test
  • Switch or router test and single ended network test mode
  • Throughput, frame loss, latency, back-to-back
  • End-to-end network test mode (2 units in local-remote setup)
  • Throughput, frame loss, back-to-back
Service Activation Test ITU-T Y.1564 Service Activation Test:

  • Up to 8 services per port
  • Colour-aware and non-colour-aware in combinations
  • Test modes: one-way (uni-or bi-directional, symmetrical, or asymmetrical), round-trip
Service Activation Test Verification against service acceptance criteria: information rate, frame transfer delay, frame delay variation, frame loss rate, availability
EMC EN55022/CIPSR22
EN61000-3-2
EN55024
Temperature Operating: 14 °F to 122 °F (-10 °C to 50°C)
Storage: -40 °F to 158 °F (-40 °C to 70 °C)
Relative Humidity 0% to 95% (non-condensing)
Size 3.14 in × 5.31 in × 9.84 in (8 cm × 13.5 cm × 25cm)
Weight 2.42 lb (1.1 kg)
