Advanced Ethernet Tester with 6.56 ft Blind Zone & 0.01 dB Resolution – Amuse Tech Solutions

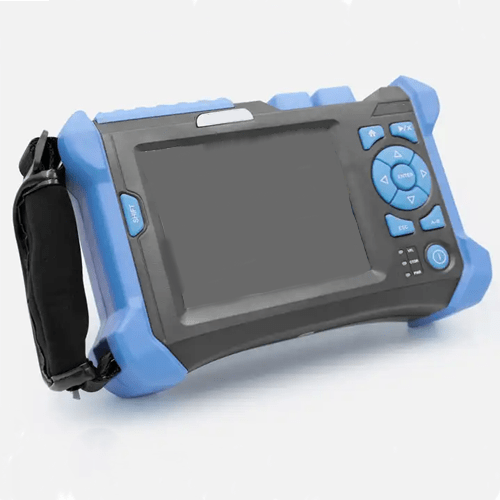

Advanced OTDR with large touch screen, long battery life, intelligent testing, and wide wavelength options. Features dustproof, shockproof design.
Description
Features
- Large touch screen + shortcut keys, easy to operate
- Large capacity polymer lithium battery with superlong working hours
- Intelligent testing, simple use and powerful function
- Media of memory card + SD card with super-large storage capacity of traces
- Able to meet FTTX testing needs
- Several wavelengths can be chosen
- Solid casing design, dustproof and shockproof
Technical Specifications
| Wavelength | 850 nm or 1300 nm, 1310 nm or 1490 nm or 1550 nm |
| Dynamic Range | 23 dB or 21 dB, 32 dB or 30 dB, 34 dB or 32 dB, 36 dB or 34 dB, 38 dB or 36 dB, 34 dB or 32 dB or 32 dB, 38 dB or 36 dB or 36 dB |
| Pulse Width | 5 ns,20 ns, 40 ns, 80 ns, 160 ns, 320 ns, 640 ns, 1280 ns, 2560 ns, 5120 ns, 10240 ns, 20480 ns |
| Event Blind Zone | 6.56 ft (2 m) |
| Attenuation Blind Zone | 29.52 ft (9 m) |
| Linearity | ±0.05 dB or dB |
| Loss Threshold | 0.05 dB |
| Loss Resolution Ratio | 0.01 dB |
