Description
Overview

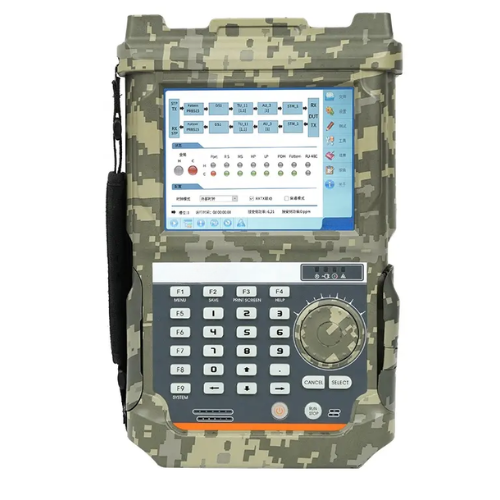

Amuse Tech Solutions Data Transmission Spectrum Analyzer is a high-performance device designed for precise signal analysis across a comprehensive 155M frequency range. it allows users to tailor the product to their specific requirements. Built for reliability ensuring long-lasting performance. The intuitive color screen enhances user experience by providing a clear and easy-to-navigate interface. Additionally, its battery-powered design makes it a portable and convenient solution for on-site analysis and measurement applications.
Features
- Support DSN/PDH testing function for DS1/DS3, E1/E3/E4 interfaces
- Supports STM-1/0C-3 electrical port and SDH/SONET testing function for STM-1/OC-3 optical port
- Support 120 ohm E1 testing function based on RJ48 interface
- PDH/SDH error testing and performance analysis
- SDH/SONET overhead monitoring and control
- Pointer monitoring and adjustment, generating G.783 pointer test sequence
- Automatic protection switching time test
- Supports payload mapping from VC4-16C/STS-48C to VC12/NVT2VC11/VT1.5, including PDH/DSN payload (E1/E2/E3/E4DS1/DS3)
Â
Technical Specifications
| USB Data Interface | 2 × USB 2.0 A-type, 1 × USB 2.0 Mini |
| Ethernet Port | Ethernet 10/100, RJ45 |
| Storage Capacity | 8G (optional: 16G, 32G, 64G) |
| Audio Interface | 3.5mm jack for optional headphones |

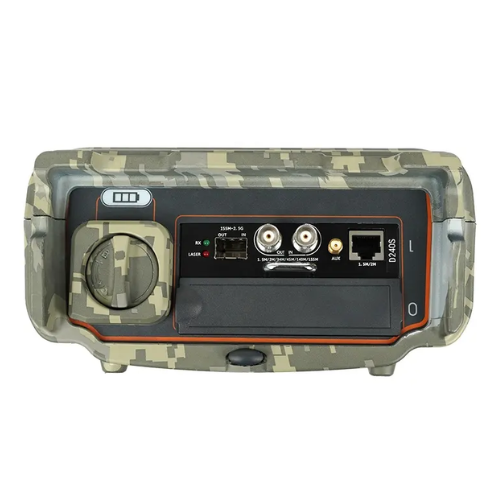

| Size and Weight | FT100: 319(H) × 202(W) × 105(D) mm, 2.8kg D240S: 25(H) × 97(W) × 259(D) mm, 0.4kg |
| Temperature | Operating: -10°C to 50°C Storage: -40°C to 70°C |
| Relative Humidity | 0% to 95% (non-condensing) |
| Vibration | <1.5g at 10Hz to 500Hz (on three main axes) |
| Mechanical Impact | <750cm on six faces and eight main edges (GR-196-CORE standard) |
| EMC Compliance | EN55022/CIPSR22, EN61000-3-0, EN55024 |
| Battery | Rechargeable & replaceable lithium-ion Working time: 3 hours (typical) Charging time: 6 hours (typical) |
| Power Supply | Input: 100-240V (AC), 50Hz/60Hz, 1.6A Output: 19V, 4A |
