Advanced CAT Network Tester for Cable Performance – Amuse Tech Solutions
Versatile tester for CAT 3, 5e, and 6 cables, featuring multi-connector support and storage for 100 results to ensure optimal network performanc
Description
Overview
Advanced CAT Network Tester for Cable Performance support ethernet systems, measure the speed and performance on CAT 3, CAT 5 e and CAT 6 cables according to ANSI or TIA or EIA-568-B and ISO or IEC 11801 to ensure the cable qualification.
Features

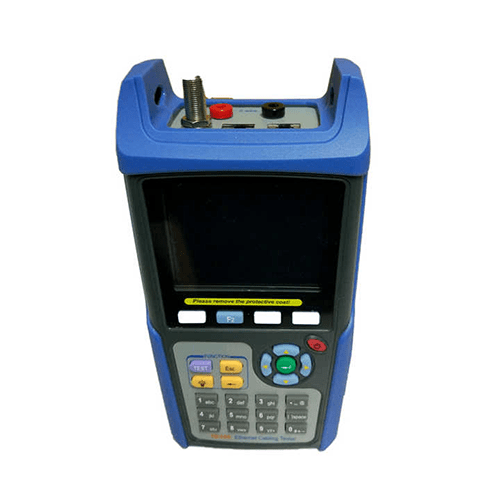

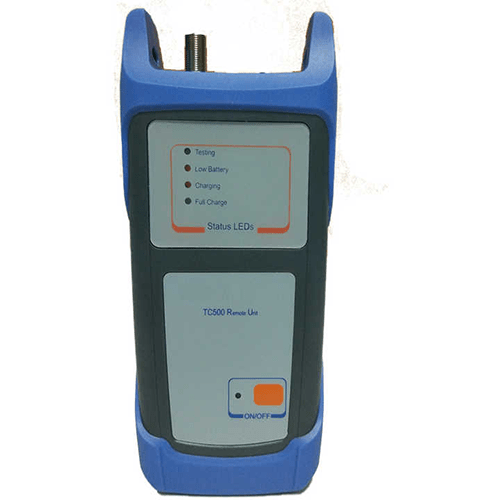

- Contains a main unit and a remote unit.
- Multi connector one RJ45 connector for UTP or STP data cable testing
- one F connector for coax testing
- one RJ 11 connector for telephone cable testing
- Tone generator
- Two additional functions, ping and BER Test
- Store at least 100 results
- Toolbox software to analyze the results on PC
Technical Specifications
| Accuracy | ± 4.92 ft (± 1.5 m) |
| Length | 0 mi to 0.109 mi (0 m to 176 m) (UTP) 0 mi to 0.12 mi (0 m to 200 m) (Coax) |
| Propagation Delay | 0 ns to 850 ns |
| Delay Skew | 0 ns to 100 ns |
| DC Resistance | 0 ohm to 100 ohm |
| RF Frequency | 1 MHz to 250 MHz |
| RF Items | NEXT 0 dB to 70 dB Insertion Loss of 0 dB to 40 dB |
| Testing interface | RJ45; RJ11; F; Banana Jacks |
| Another interface | USB |
| Power Supply | Main unit: 7.4 V or 2.4 mAH Lithium battery Remote unit: 7.4 V or 1.1 mAH Lithium battery |
| Working Time | 3.5 hrs |
| Charging Time | 5 hrs |
