Advanced BLE 5.1 WiFi Gateway for Seamless Beacon Connect – Amuse Tech Solutions
Amuse Tech Solutions BLE 5.1 WiFi Gateway features a compact design with multi-color indicators, allowing easy beacon connection and data upload to the server.
Description
Overview

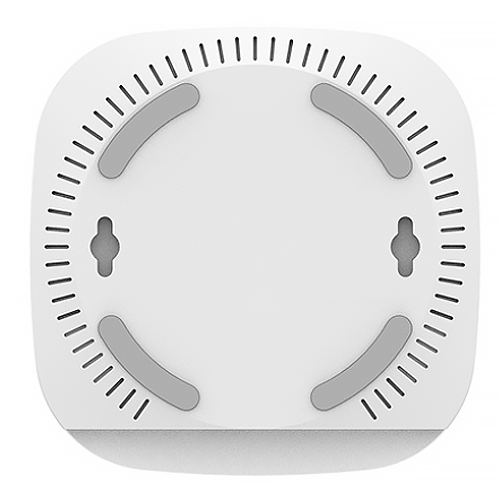

Amuse Tech Solutions advanced BLE 5.1 WiFi gateway for seamless beacon connect is a compact shape with 3 multi color indicator lights. It can be fixed by sticking or screwing. It is convenient for users to get the information of the Beacon and upload the information to the server.
Features
- PoE, DC and USB power supply.
- The WIFI data rate of MKGW1 can be 150 Mbps.
- Support MQTT and HTTP or HTTPS protocols.
- User can modify the gateway parameters on the web UI.
- Support Ethernet and WIFI internet access.
Technical Specifications
| Interface | PoE Port or DC power port or micro USB port or RJ45 network port or USB upgrade port |
| Wireless Standard | IEEE 802.11 b or g or n |
| WIFI Data Rate | 150 Mbps |
| WLAN Transmit Power | 18 dBm |
| WIFI Coverage | 984.25 ft (300 m) |
| Bluetooth Standard | BLE 5.0 |
| Bluetooth Scanning Range | 393.70 ft (120 m) |
| Maximum Scanning Capability | 300 per s |
| Server Protocol | MQTT, HTTP or HTTPS |
| Temperature | 32 °F to 131 °F (0 °C to 55 °C) |
| Size | 4.72 in x 4.72 in x 0.89 in (12 cm x 12 cm x 2.25 cm) |
| Weight | 4.88 oz (138.2 g) |
