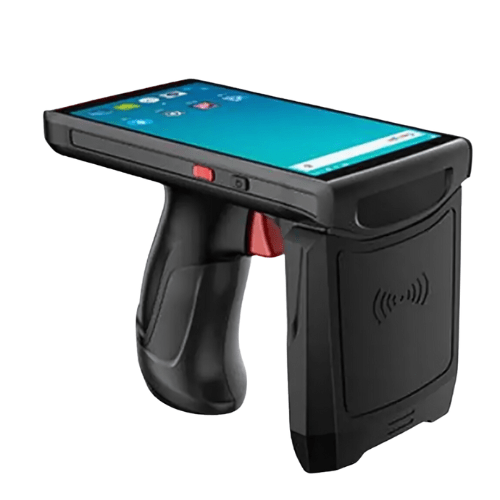

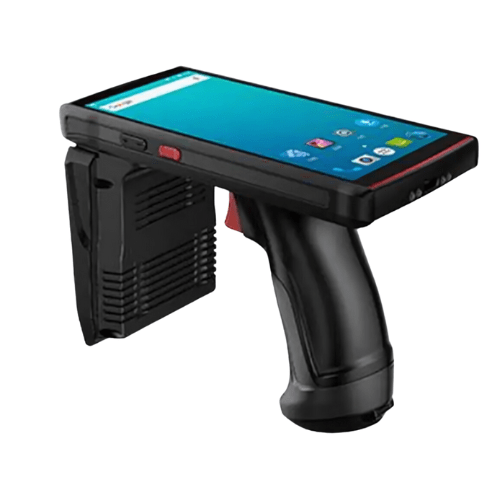

Advanced 32-bit CMOS Barcode Scanner with NFC & Dual-Band WLAN – Amuse Tech Solutions
Versatile 920-928 MHz RFID reader and barcode scanner with 32-bit color depth, 5.7″ IPS display, Android 9.0, and 13 MP rear camera.
Description
Technical Specifications
| Frequency | 920 MHz to 925 MHz or 902 MHz to 928 MHz or 865 MHz to 868 MHz |
| Protocol | EPC C1 GEN2 or ISO18000-6C |
| Scan Element Type | CMOS |
| Colour Depth | 32 bit |
| Interface Type | USB |
| Max Paper Size | Customized |
| Optical Resolution | 32 |
| Scan Speed | 100 Scans per sec |
| Color | Black |
| Application | Store Inventory |
| Barcode Support | 1D, 2D barcode |
| Battery | 3.7 V to 4500 mAh |
| CPU | Cortex-A53 Octa-core 64-bit 2.0 GHz high-performance processor |
| RAM + ROM | 3 GB + 32 GB |
| Expand Memory | Micro SD(TF) Supports up to 128 GB |
| System | Android 9.0 |
| WLAN | Dual-band 2.4 GHz or 5 GHz Supporting IEEE 802 a or b or g or n or ac protocol |
| Bluetooth | Support Bluetooth 2.1 + EDR or 3.0 + HS or 4.1 + HS Transmission distance 16.4 ft to 32.8 ft (5 m to 10 m ) |
| GNSS | Support GPS, Galileo, Gioness, Beidou |
| Display | 5.7 in (14.4 cm) IPS color display |
| TP | Corning gorilla glass supports multi-touch. Supported gloves and wetlands Rechargeable polymer battery (3.8 V 5000 MAh) removable |
| Battery Capacity | Standby Time > 350 hrs Working Time > 12 hrs Charging Time 3 H to 4 H, using standard power and data cable |
| Expansion Card Slot | PSAM X 2, Nano SIM card x 1, TF card x 1 |
| Communication Interface | Type-C USB x 1, OTG |
| Audio | Speaker, Microphone, Earpiece |
| Keypad | Power button, Volume + or – button, Scan button X 2 Handle scan button X 1 |
| Sensors | Gravity sensors, light sensors, Vibration motor |
| Antenna | Circularly Polarized antenna |
| Power | 30 dBm, support + 5 dBm to +30 dBm adjustment |
| Distance | 0 ft to 42.6 ft (0 m to 13 m) |
| Reading Speed | > 200 tags per second (circular polarization) |
| Rear Camera | 13 MP HD camera, Support auto focus, Flash, Anti-shake, Macro shooting |
| Front Camera | 2 MP color camera |
| Input | English, Pinyin, five strokes, Handwriting input, support soft keypad |
| Environment Humidity | 5 % RH to 95 % RH (no condensation) |
| Drop Specification | 6 sides support 3.9 ft (1.2 m) drop and 30 times to the concrete within the operating temperature |
| Rolling Test | 1640.4 ft x 1.6 ft (500 m X 0.5 m) rolling for 6 sides |
| Standard | Adapter, data cable, protective firm, instruction manual |
| NFC | 13.56 MHz Support ISO 14443A/B. 15693 agreement Reading distance 0.7 in to 1.9 in (2 cm to 5 cm) |
| Operating Temperature | – 4 °F to 131 °F (- 20 ℃ to 55 ℃) |
| Storage Temperature | – 40 °F to 158 °F (- 40 ℃ to 70 ℃) |
| Size | 6.2 in X 2.9 in X 4.8 in (159 mm × 75 mm × 124 mm) |
| Weight | 17.6 oz (< 500 g) |
