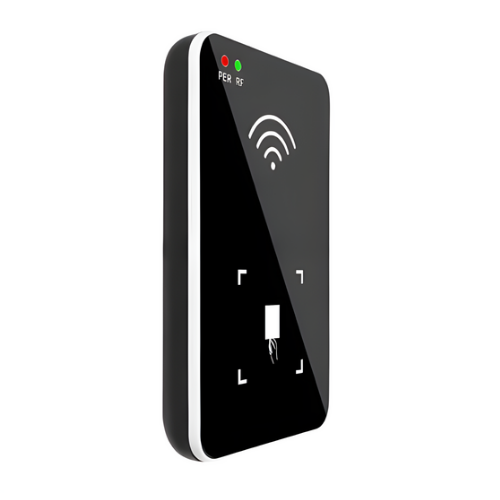

Adjustable Frequency UHF RFID USB Desktop Reader, Multi-Label Reading – Amuse Tech Solutions
UHF RFID reader features adjustable frequency (902 MHz to 928 MHz or 865 MHz to 868 MHz), supports ISO-18000-6B/C and provides DLL for custom software development.
Description
Overview
UHF RFID reader: Adjustable frequency range, supports ISO-18000-6B or C. USB interface, PR 9200 RF IC, DLL for software development.
Technical Specifications
| Frequency Range | 902 MHz to 928 MHz or 865 MHz to 868 MHz (can be adjusted according to different countries or regions) |
| Air Interface Protocol | Support compliance with ISO-18000-6B ISO-18000-6C (EPC G2) |
| Frequency Modulation Method | Broad spectrum frequency modulation (FHSS) or fixed frequency, which can be set by software |
| Number Of Antennas | Built-in double-feed point ceramic antenna |
| Communication Interface | USB |
| RF IC Used | PR 9200 |
| Reading Distance | Read > 3.94 in (100 mm), Write > 1.97 in (50 mm) |
| Application Software Interface | Provide dynamic link library (DLL) to support secondary development |
| Label Operation Performance | |
| Reading Distance | Built-in transceiver antenna reading distance > 11.81 in (300 mm), writing distance > 3.94 in (100 mm) |
| Mechanical Electrical Performance | |
| Power Supply | Computer USB interface for power |
| Humidity | 5 % to 95 %, non-condensing |
| Protection Class | IEC IP52 |
| Operating Temperature | – 4 °F to + 140 °F (- 20 ºC to + 60 ºC) |
| Storage Temperature | – 40 °F to + 176 °F (- 40 °C to + 80 °C) |
| Size | 5.47 in x 3.83 in x 0.87 in (139 mm x 86 mm x 22 mm) |
| Weight | 4.23 oz (120 g) |
