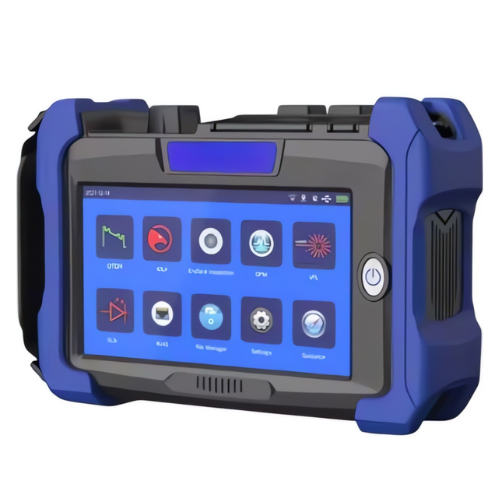

Accurate PON OTDR with High Resolution Display – Amuse Tech Solutions
Advanced fiber testing device with multi-language support, precise measurement, long range, durable design, and extensive data storage.
Description
Features
- Accurate Fiber Measurements
- High-Resolution Touch Display
- Wide Distance Range
- Reliable Power Efficiency
Technical Specifications
| Applicable Fiber | SM (ITU-T G.652) |
| Languages | English, Spanish, Chinese, Portuguese, French, Russian, Thai, Korean |
| Optical Connector | FC/UPC (SC/UPC/APC, LC/UPC/APC, FC/APC Optional) |
| Display | 7 in touch screen (Resolution: 1024 × 600) |
| PC Analysis Software | Included |
| Link Map | Included |
| Pass/Fail Judgment | Included |
| Distance Unit | m, km, mile, kf |
| Altitude | 13123 ft (4000 m) |
| Humidity | 0 % to 90 % RH (20% to 90% with 739874 AC adapter, non-condensing) |
| Power Requirements | 100 to 240VAC, 50/60Hz (AC adapter) |
| LED Light Illumination | >15000mcd |
| Operating Time | 12 hours |
| Data Storage | Internal storage: ≥10000 traces, External storage: USB memory |
| Distance Range | 0.1 km to 320 km (0.06 mi to 198.84 mi) |
| Pulse Width (ns) | 3, 5, 10, 30, 50, 100, 200, 300, 500, 1000, 2500, 5000, 10000, 20000 |
| Number of Sampling Points | Max 250000 |
| Sampling Resolution | Min (1.57 in) 0.04 m |
| Distance Measurement Accuracy | ± ((0.75 m) 2.46 ft + Measurement distance × 2 × 10⁻⁵ + Sampling resolution) |
| Loss Measurement Accuracy | ±0.03 dB/dB |
| Return Loss Measurement Accuracy | ±2 dB |
| Wavelength | 800 nm to 1650 nm |
| Measure Range | -70 to +6 dBm |
| Measure Accuracy | < (±0.2 dB or ±5%) |
| Display Resolution | 0.01 dB |
| Output Power | ≥ -10 dBm |
| Modulation Mode | CW, 270 Hz, 1 kHz, 2 kHz |
| Laser Class | Class 1M or Class 1 |
| Optical Input Port | OTDR port |
| Operating Temperature | 14 °F to 122 °F (-10 °C to 50 °C, 32°F to 104 °F (0 °C to 40 °C when AC adapter is being used)) |
| Dimensions | 9.1 in × 6.3 in × 2.8 in (23.2 cm, 16.1 cm,7.0 cm) |
| Weight | 3.53 lb. (1.6 kg), including internal battery and protectors, excluding OTDR unit and options |
