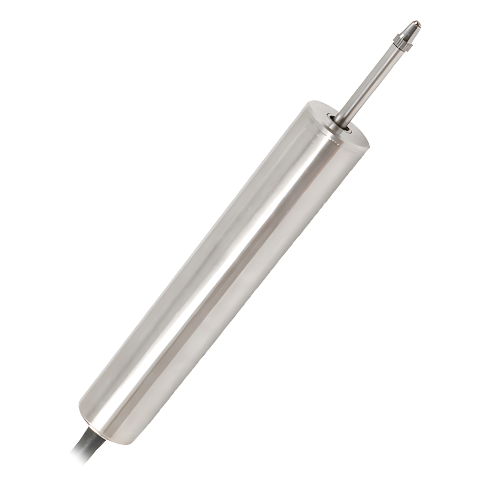

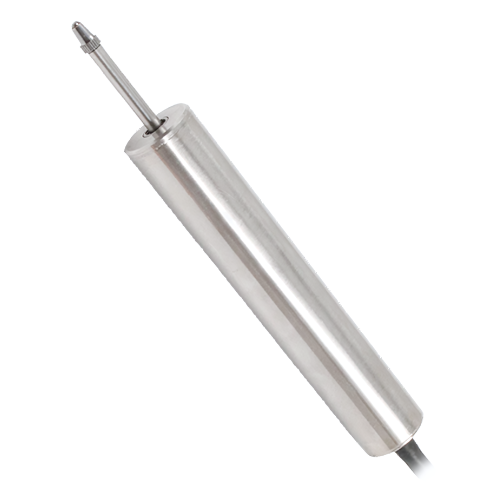

Accu Track Linear Potentio Displacement Sensor For Accurate Positioning- Amuse Tech Solutions
Accurate high precision Track Displacement Sensor which enables precise positioning, reliability in various industrial and automation applications.
Description
Features
- No sliding contacts, long service life
- High resolution and good repeatability
- AC signal power supply, external high-performance signal demodulator
- The differential transformer displacement sensor (LVDT) can be widely used in aerospace, construction, mechanical railway, textile, metallurgy, plastics, chemical industry and other industries to measure linear displacement, elongation, vibration, object thickness, expansion, etc.
Technical Specifications
| Power Supply | 9 to 28 V DC |
| Protection Level | IP64 |
| Resolution | ≤ 0.1 μm (highest), digital output is 16 bit |
| Repetitive Error | 5 μm, 10 μm |
| Linearity Error | Analog output: ± 0.25 %, ± 0.5 %, etc. optional; Digital output: ± 0.25 %, ± 0.1 %, etc. optional |
| Line Length | 39.37 in (100 cm) |
| Displacement Range | 0.39 in, 0.59 in, 0.98 in, 1.96 in, 3.93 in (1 cm, 1.5 cm, 2.5 cm, 5 cm, and 10 cm) |
| Operating Temperature | -13 °F to 185 °F (-25 °C to 85 ℃) |
