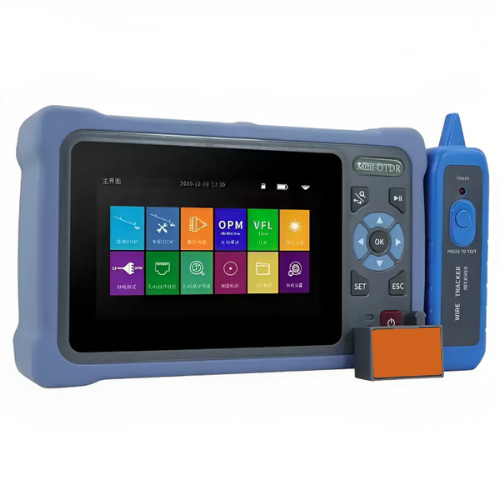

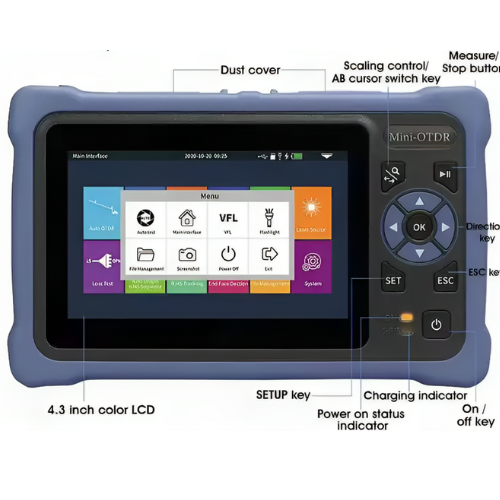

9-in-1 OTDR Ethernet Tester with 20+ Hours Battery Life – Amuse Tech Solutions
9-in-1 Ethernet cable tester with a capacitive touchscreen, measuring range of -70 dBm to +6 dBm, and a wide wavelength of 800-1700 nm.
Description
Features
- 9-in-1 multifunctionality
- 3 in (1.9.2 mm) capacitive touchscreen with multi-touch support
- Tempered glass panel for scratch resistance
- Supports horizontal and vertical user habits
- Charging treasure compatibility for extended use
- International standards for accurate test data
- Sink type light port for better protection
- Data export via pen-driver, SD card, Micro USB
Â
Technical Specifications
| Product Type | OTDR |
| Connector | SC or FC |
| Wavelength | 800 nm to 1700 nm |
| Output wavelength | 1310 nm or 1550 nm ± 20 nm |
| Measuring range | -70 dBm to +6 dBm or –50 dBm to +26 dBm |
| Battery life | > 20 Hours |
| Operate Temperature | 14 °F to 131 °F (-10 ℃ to + 55 ℃) |
| Storage Temperature | -40 °F to 176 °F (-40 ℃ to + 80 ℃) |
| Dimension | 6.88 in x 4.13 in x 1.77 in (175 mm x 105 mm x 45 mm) |
| G.W. | 1.23 lb (560 g) |
