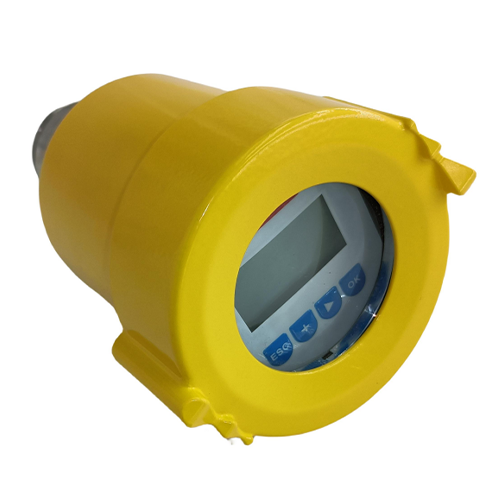

80 GHz NB IoT Radar Level Sensor for Liquids and Solids – Amuse Tech Solutions
Industrial radar sensor with NB-IoT, Bluetooth, and wide-range detection. Ideal for precise monitoring of liquids and solids in harsh environments.
Description
Features
- 80 GHz FMCW technology
- False echo suppression option
- Narrow beam, small blind zone and accurate measurement
- Unaffected by temperature fluctuations
- Resistant to dirt and build up
- Measurement under vacuum and high pressure
- Small size, easy to use, less maintenance
Technical Specifications
| Grade | Industrial |
| Customized Support | OEM, ODM, OBM, Software Reengineering |
| Material | Aluminum Alloy or Stainless Steel + PTFE |
| Signal Output or Mode | 4 mA to 20 mA or HART |
| Digital Output | RS485 or MODBUS |
| Application | Liquid |
| Measuring Range | 0 ft 98.42 ft (0 m to 30 m) |
| Process Connection | Thread; Flange from DN50 |
| Process Pressure | 0.1 MPa to 0.1 MPa |
| Accuracy | ±1 mm |
| Frequency Range | 78 GHz to 81 GHz |
| Bandwidth | Instant 4 GHz |
| Explosion-proof Grade | Ex ia IIB T4 Ga |
| Protection Grade | IP67 |
| Connection | Bluetooth, NB-IoT, 4G |
| Operating Voltage | Two Wired DC 24 ± 6 V Four Wires AC 220 V |
| Antenna | Aluminum Alloy or Stainless Steel + PTFE Horn Lens Antenna |
| Process Fitting | Thread G1½ Flange from DN50 |
| Medium Temperature | -40 °F to 248 °F (-40 °C to 120 °C) |
