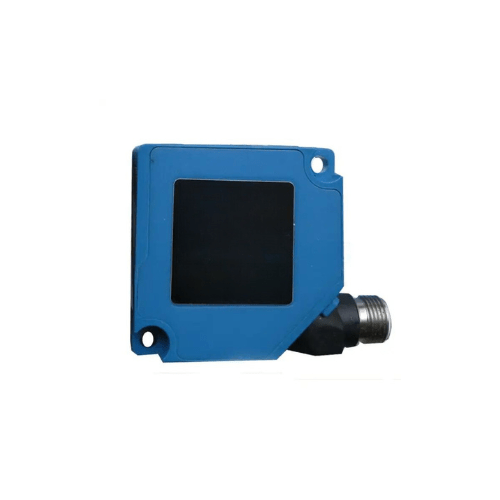

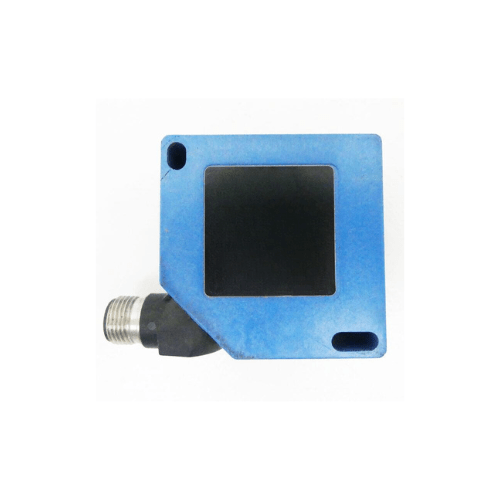

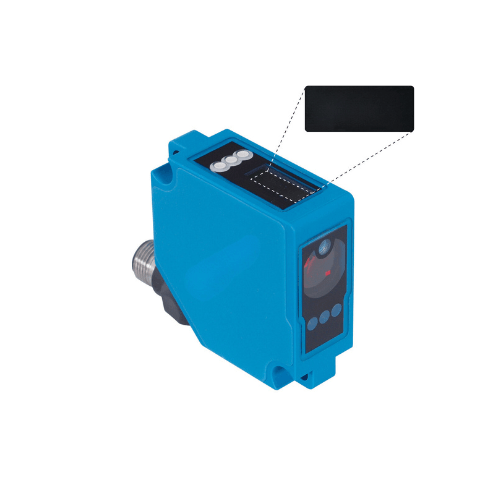

660nm LiDAR Sensor with 3m Range & IP68 Protection – Amuse Tech Solutions
Durable LiDAR sensor with 3m range, 18-30V DC power, and IP68 rating. Features 4-20mA analog output for precise measurements
Description
Technical Specifications
| Wavelength | 660 nm |
| Power Supply Voltage | 18 V to 30 V DC |
| Current Consumption | <70 mA |
| Switching Frequency | 250 Hz |
| Switching Output Current | 100 mA |
| Analog Output | 4 mA to 20 mA |
| Shell Material | Plastic |
| Lens Cover | PMMA |
| Protection Grade | IP 68 |
| Connection Mode | M 12 x 1 4 pins |
| Voltage | AC and DC
12 V 24V 110V 220V 380V |
| Current | 30 ma 50 ma 100 ma |
| Working Range | 1.97 in to 120.08 in (50 mm to 3050 mm) |
| Measurement Range | 118.11 in (3000 mm) |
| Temperature Range | -40 °F to 122 °F (-40 °C to 50 °C) |
