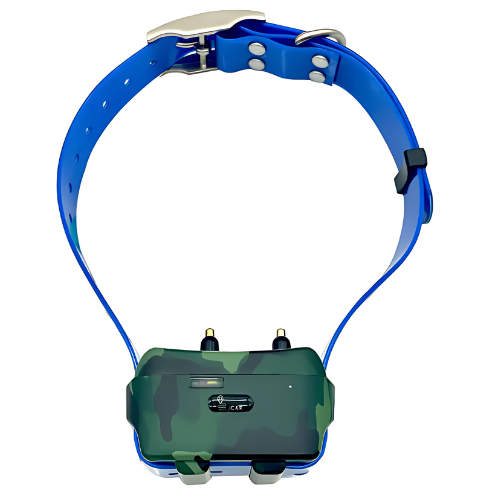

4G Waterproof GPS Dog Collar with Remote Training & Geo-Fence – Amuse Tech Solutions
The IK122T 4G GPS collar provides real-time tracking, strobe light, e-shock training, and geo-fencing with a waterproof design for reliable dog monitoring.
Description
Features
- Real Time Tracking
- Internet upgrade from 2G to 2G+4G
- Strobe Light, you could set up strobe light to find your dog in the forest at night.
- Remote Training (Sound Electric shock) by sending command on app
- 1000 positioning storage capacity: suppose the device be set to upload data every 10 seconds, 1000 positioning storage capacity can work about 3-4 hours when GPS is weak or lost. The GPS collar will upload data automatically when GPS signal come back normal.
- 180 days tracking route playback.
- Geo-Fence to set a safe area for your dog, and you will receive an alarm once dog enters or leaves the safe area.
- You could own an admin account to manage all your GPS collars at the same time, which has no limit on quantity.
- No distance limit for tracking and training.
- Electronic shock, you could send e-shock command to train the dog
- Set admin number for the tracker, then make a call to the sim card inside your GPS collar, you could hear from the dog.
- Buzzer to help find dog: send search dog command if you could not find out your dog in the forest, the 4G will play a tune to help you identify the dog location.
- Owner can monitor different dogs’ tracking route at the same time by setting the tracking route color (max 21 colors)
- The upgraded 4G comes with IP68, so don’t worry about water when your dog plays near the river or water.
- The IK122T comes with strong housing which could be anti-bite and anti-drop, just relax and enjoy your hunting trips with your four-leg partner.
- The E-shock pin is waterproof and removable, you could remove it if you don’t need the e-shock function
Technical Specifications
| Sim Card | Nano SIM Card |
| Telecom Chipset | Quectel EG915U-EU |
| Network | GSM or LTE |
| Frequency Band | GSM 850 MHz or 900 MHz or 1800 MHz or 1900 MHz LTE B1 or B3 or B5 or B7 or B8 or B20 or B28 |
| Location Chipset | Quectel EG915U-EU |
| Location Way | LBS or AGPS or GPS or Glonass |
| Tracking Sensitivity | -162 dBm |
| Humidity | 5 % RH to 95 % RH non-condensing |
| Internal Battery | 3.7 V 4000 mAh Li-Polymer battery |
| TTFF (Cold status) | 35 s to 80 s |
| TTFF (Warm status) | 35 s |
| TTFF (Hot status) | 1 s |
| Standby Time | 30 days |
| Working Voltage | DC 9 V to 75 V |
| Working Current | 4 V or 35 mA to 120 mA |
| Sleep Current | 4 V or 2 mA to 15 mA |
| External Voltage | 5 V DC 1 A |
| Magnet | No |
| Storage Temp. | -4 °F to 122 °F (-20 °C to 50 °C) |
| Operation Temp. | -4 °F to 158 °F (-20 °C to 70 °C) |
| Device Dimension | 27.7 in x 15.8 in x 15.8 in (70 cm x 40 cm x 40 cm) |
| Box Dimension | 7.6 in x 5.2 in x 2.0 in (19.3 cm x 13.2 cm x 5.0 cm) |
| Device Weight | 5.04 oz (143 g) |
| Box Weight | 2.72 oz (77 g) |
