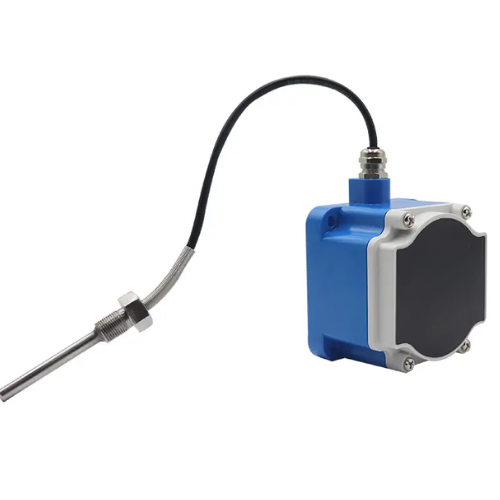

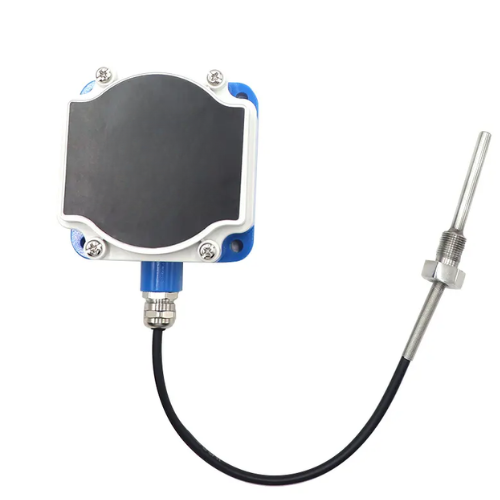

4G Sensor for Real Time Pressure and Temperature Monitoring – Amuse Tech Solutions
Smart wireless sensor with 4G NB IoT real time measurement customizable pressure and level range durable design and reliable performance.
Description
Features
- 4G NB-IoT wireless connectivity
- Real-time sensitive measurement
- Operates in extreme temperatures
- Customizable pressure and level range
Technical Specifications
| Power Supply | 3.6 V DC, 19 Ah battery |
| Accuracy | 0.5 % FS |
| Pressure Range | -100 KPa to 70 MPa (Customizable) |
| Measurement Signal | Pressure Signal |
| Ingress Protection | IP 68 |
| Communication | 4 G NB-IoT, optional LoRa support |
| Maximum Emission Current | ≤200 mA |
| Transmit Power | 23 dBm, ±2 dB |
| Receiving Sensitivity | -115 dBm |
| Processing | Digital signal conversion for real-time data transmission |
| Response Time | Fast with no damping lag |
| Temperature Range | -328 °F to 1562 °F (-200 °C to 850 °C) |
| Operating Temperature | -40 °F to 176 °F (-40 °C to 80 °C) |
