4G IoT Gateway with Bluetooth and Remote Control – Amuse Tech Solutions
4G IoT Gateway with supports LTE, UMTS, and Wi-Fi, enabling flexible integration with Bluetooth devices and remote control for various applications.
Description
Overview

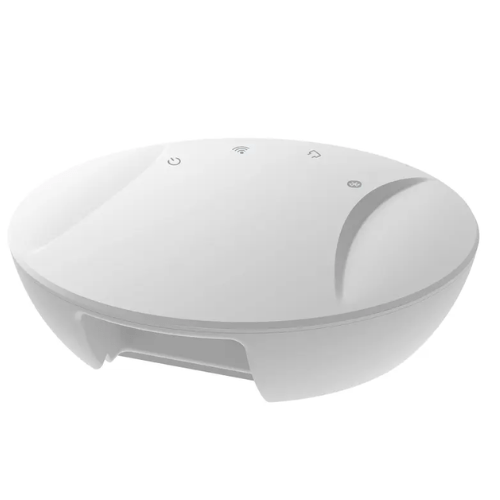

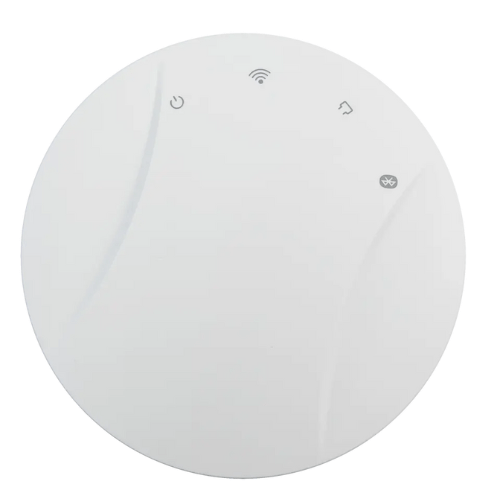

Amuse Tech Solutions 4G IoT Gateway with Bluetooth and Remote Control provides seamless connectivity for IoT devices with support for LTE, UMTS, and Wi-Fi networks. It enables flexible integration and remote management of Bluetooth devices, offering reliable performance in various applications. With POE and 5V power options, this gateway is ideal for connecting and controlling devices in smart environments.
Features
- Supports 4G LTE, UMTS, and Wi-Fi connectivity
- Integrates Bluetooth 4.2/5.0 for IoT device management
- Remote control of Bluetooth devices
- POE and 5V power supply options
- Flexible configuration for smart environments
- High compatibility for a wide range of IoT applications
- Provides stable and reliable performance for seamless integration
Technical Specifications
| Application | Positioning and Navigation |
| Power Supply | DC 5 V, POE Switch up to 57 V |
| Currents | Wi-Fi: 200 mA, 5 V 4G: 59 mA to 839 mA, 5 V |

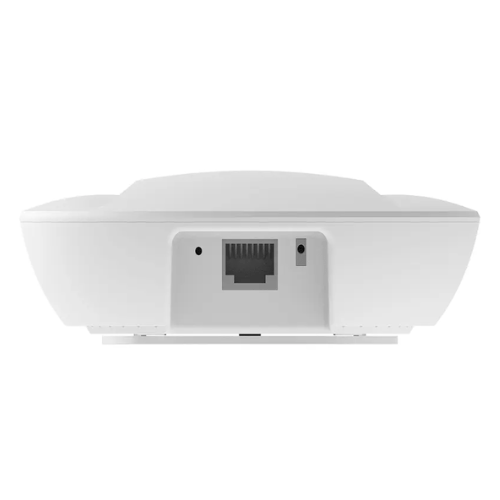

| Interface | Power Supply Port |
| WiFi Protocol | IEEE 802.11 n, IEEE 802.11 g, IEEE 802.11 b |
| Bluetooth Protocol | 4.2 / 5.0 |
| Connection Distance | 656.17 ft (200 m) |
| Transmit Power | 0 dBm to +20 dBm |
| Operating Temperature | -4 °F to 158 °F (-20 ℃ to 70 ℃) |
Click Here to Download Technical
Documentation (User Manual or Instruction Manual)
