4 Core 2G RAM 8G MLC Computing Module – Amuse Tech Solutions
Amuse Tech Solutions 4-core IoT computing modules with 2GB RAM, 8GB memory, 5G/4G, HDMI, WiFi, GPS, remote management, and more.
Description
Overview

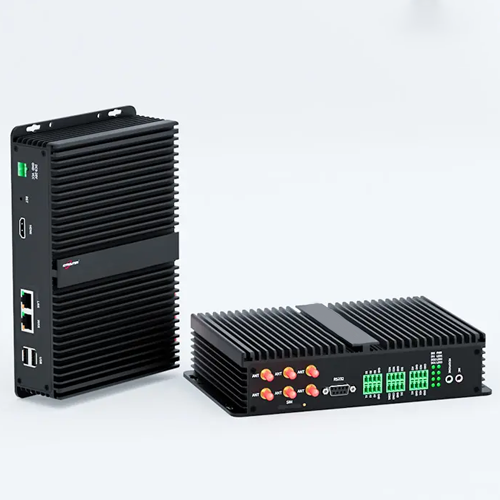

Amuse Tech Solutions 4-core 2g ram 8g MLC computing modules are edge computing gateways launched by IoT router. With its rich hardware interfaces, drag-and-drop programming method, Zero Code design concept, convenient remote management, and other characteristics, it can quickly, flexibly, accurately, and efficiently respond to various IoT industry needs.
Technical Specifications
| RAM | 2G | ||||
| Memory | 8G (MLC) | ||||
| SD Card (Option) | 128 G (max) | ||||
| Computing Power | 1 Tops | ||||
| 5G | Support | ||||
| 4G | Support | ||||
| HDMI | Support | ||||
| Ethernet | Support | ||||
| WIFI | AP + Station | ||||
| GPS | Support | ||||
| Processor | 4-Core A55@2.0GHz | 2-Core A7@1.2GHz | 2-Core A7@1.2GHz | ||
| RAM | 2G | 512 MB | 512 MB | ||
| Memory | 8G (MLC) | 4G (MLC) | 4G (MLC) | ||
| SD Card | 128 G | 128 G | 128 G | ||
| Computing Power | 11Tops | 4G | 4G | ||
| HDMI | ✓ | ✗ | ✗ | ||
| Ethernet | 1WAN, 1LAN | 1WAN, 1LAN | 1WAN, 1LAN | ||
| WiFi | AP+Station | AP+Station | AP+Station | ||
| GPS | ✓ | ✓ | ✓ | ||
| USB | 2 x USB2.0 | 1 x USB2.0 | ✗ | ||
| RTC | ✓ | ✓ | ✓ | ||
| RS485 | 5 | 2 | 2 | ||
| RS232 | 1 | 1 | 1 | ||
| CAN | 2 | 2 | 2 | ||
| DO | 2 | 2 | ✗ | ||
| DI | 2 | 2 | ✗ | ||
| AI | 2 | ✗ | ✗ | ||
| Working Voltage | 9 V to 36 V | 9 V to 36 V | 9 V to 36 V | ||
| Working Current | 400 mA @ 12 V | 550 mA or 12 V | 150mA or 12 V | ||
| Accreditation | CE | CE | CE | ||
| Heat Dissipation | Passive Cooling | Passive Cooling | Passive Cooling | ||
| Software Features | ✓ | ✓ | ✓ | ||
| Remote Maintenance | ✓ | ✓ | ✓ | ||
| Remote Management | ✓ | ✓ | ✓ | ||
| Remote Upgrade | ✓ | ✓ | ✓ | ||
| Virtual Network Port | ✓ | ✓ | ✓ | ||
| Virtual Serial Port | ✓ | ✓ | ✓ | ||
| InfluxDB | ✓ | ✓ | ✓ | ||
| Visual Programming | ✓ | ✓ | ✓ | ||
| PLC Protocol | Hundreds of PLCs | Hundreds of PLCs | Hundreds of PLCs | ||
| Web Configurator | ✗ | ✗ | ✗ | ||
| Network Protocol | MQTT or HTTP or TCP or UDP or AI or IoT Platform or One NET or Things Kit | ||||
| Working Temperature | -40 °F to 185 °F (-40 °C to 85 °C) | -40 °F to 185 °F (-40 °C to 85 °C) | -40 °F to 185 °F (-40 °C to 85 °C) | ||
| Size | 9.92 in X 5.91 in X 2.17 in (25.2 cm X 15 cm X 5.5 cm) | 7.05 in X 4.49 in X 1.10 in (17.9 cm X 11.4 cm X 2.8 cm) | 4.65 in X 3.54 in X 1.38 in (11.8 cm X 9 cm X 3.5 cm) | ||
