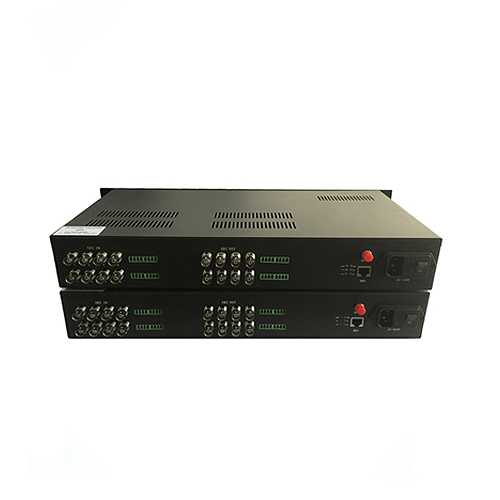

3G-SDI Fiber Optic Media Converter with 2.97 Gbps Range & 150m Equalization – Amuse Tech Solutions
SDI fiber optic media converter with 2.97 Gbps range, SMPTE support, 150m cable equalization, and 75 Ω BNC connector for high-quality video transmission.
Description
Features
- 3G to SDI video over one fiber
- 19.4 MB or S to -2.97 GB or S range
- SMPTE 292 M clock recovery
- Supports various SMPTE standards
- Multiple output wavelengths available
- Automatic 492.1 ft (150 m) cable equalization
- Optional network management system
Technical Specifications
| Input Channel | 1 |
| Reflection Loss | > 15 DB |
| Equilibrium | 0 ft to 492.1 ft (0 m to 150 m) |
| Connector | 75 Ω BNC |
| Signal Level | 800 mV nominal |
| Rise Or Fall Time | 200 Ps nominal |
| Overshoot | <10 % amplitude |
| Channel | 4 channels of 3 G or HD to SDI or ASI |
| Work Range | 19.4 MB or S to -2.97 GB or S |
| Signal Standard | TV BNC input SMPTE 424 M |
| Cable Equalization | >100 Mat 2970 Mbps, Belden 1694 A cable |
| Working Temperature | 32 °F to 122 °F (0 ℃ to + 50 ℃) |
