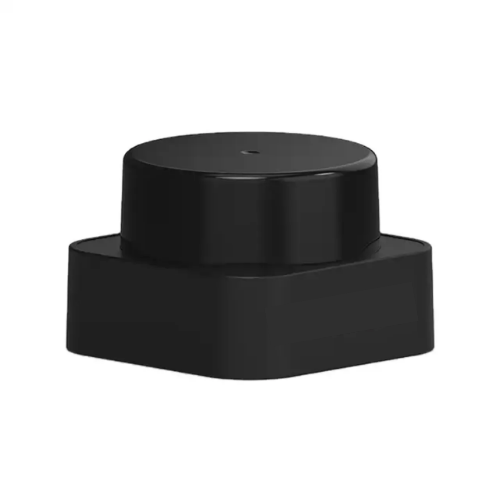

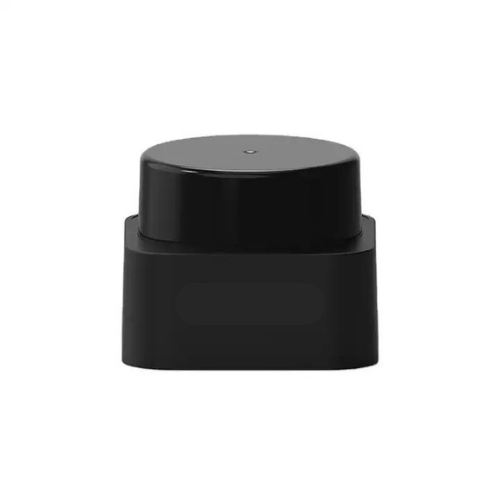

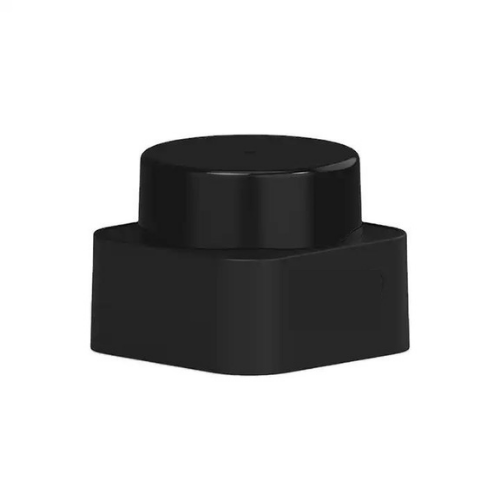

360° LiDAR, 950nm Wavelength, 10-25 Hz Scanning, 1.1 in Accuracy – Amuse Tech Solutions
360° LiDAR with 950 nm wavelength, 10-25 Hz scanning, and 1.1 in accuracy. Compact design, anti-glare up to 80,000 lux, and operates at 5.1V or 9V
Description
Technical Specifications
| Laser Wavelength | 950 nm to 15 nm |
| Scanning Frequency | 10 Hz, 15 Hz, 20 Hz, 25 Hz |
| Echo Intensity | 0 to 254 |
| Horizontal field of view | 360 º |
| Ranging accuracy | 1.1 in (30 mm) |
| Anti-glare | >80000 lx |
| Working voltage | 5.1 V DC
9 V DC |
| Temperature | 14 ºF to 122 ºF (-10 ºC to 50 ºC) |
| Size | 2.2 in x 2.2 in x 1.7 in (57 mm x 57 mm x 44 mm) |
| Weight | 0.2 lb (120 gm) |
