360° Laser Scanner with 20kHz PRF, ±1.2 in Accuracy, 82ft Range – Amuse Tech Solutions
This laser scanner has a data generation rate of 20,000 points/sec, angular resolution of 0.22°, a scanning rate of 12 Hz, a baud rate of 512,000 bps.
Description
Overview

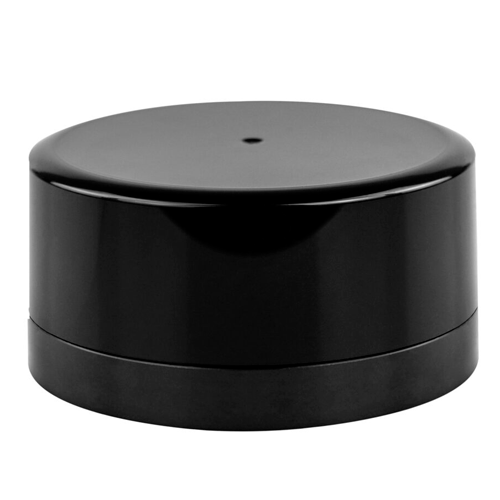

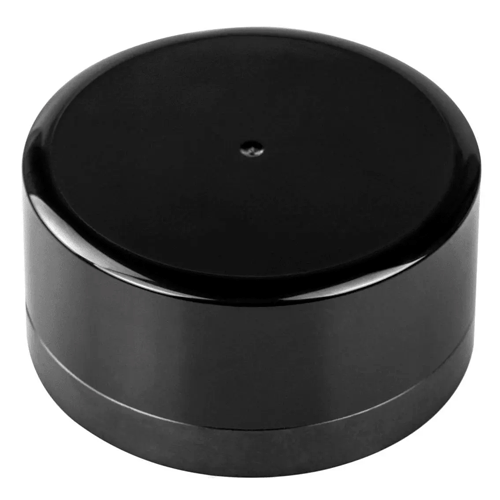

Amuse Tech Solutions navigation obstacle avoidance LiDAR sensor can two-dimensionally scan and detect the environment across 360°. The lidar uses wireless power supply and wireless communication internally, and the pulse repetition frequency (PRF) is 20 KHz. The lidar reaches a measurement accuracy of ±3 cm with a maximum range of 25 m. With such high performance, the LiDAR mainly applies to scenarios that require precise location and obstacle avoidance, including indoor service robots, AGV, cleaning and sterilization robots, drones, and so on.
Features
- Robot navigation
- Robot obstacle avoidance
- Safety distance warning for high-risk operation
- Intelligent trigger
Technical Specifications
| Scanning angle | 360° |
| Prf | 20 Khz |
| Data generating rate | 20,000 pts/sec |
| Angular resolution | 0.22° |
| Scanning rate | 12 Hz |
| Measurement accuracy | ±1.2 in (3 cm) |
| Output data resolution | 0.04 in (1 mm) |
| Wavelength | 905 Nm |
| Laser safety level | Class i |
| Detection range | 82 ft (25 m) 70% reflectivity |
| Data content | Azimuth, distance, high reflector recognition |
| Network power supply | 5 V to 15 V DC |
| Noise | (Starting) Up <60 Db, (Operating) <50 db |
| Motor | Built-In Brushless Motor |
| Communication interface | Standard serial port (baud rate 512,000 bps) |
| Shock test | 500 m/sec², lasting for 11 ms |
| Vibration test | 5 Hz 2000 Hz, 3 g rms |
| Operating temperature | 32 °F to 122 °F (0 ℃ to 50 ℃) |
| Dimensions | 3.1 in x 1.5 in (79.3 mm x 39 mm) |
| Weight | About 0.44 lb (200 g) |
